Housing designs

From cylindrical housings to spindle housings, GMN offers a broad variety of high-quality housings and installation forms for your high-frequency spindles.

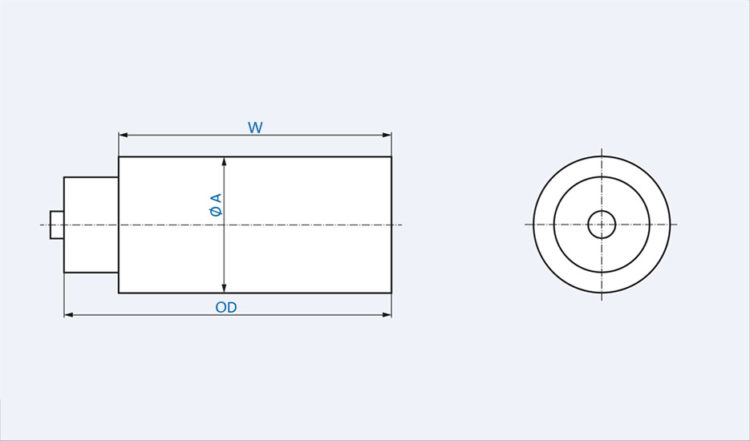

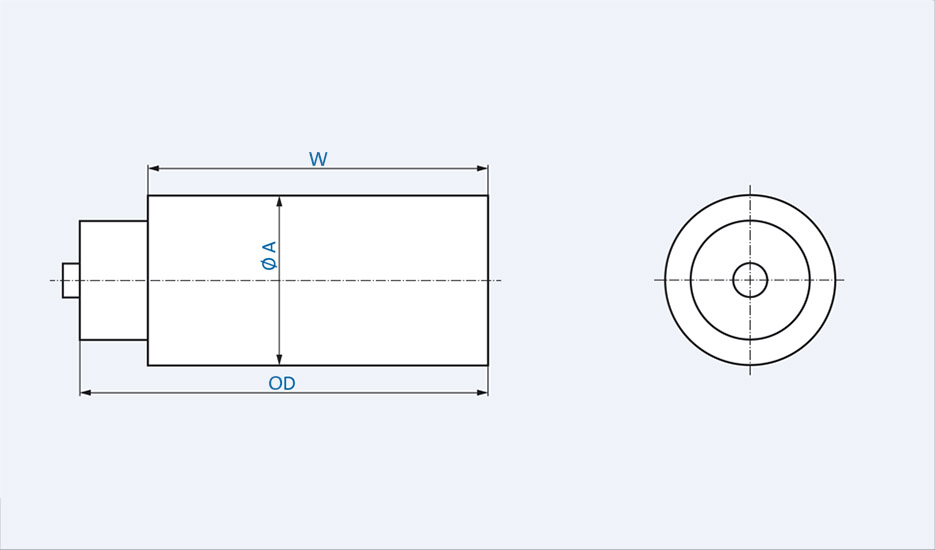

FEATURES: HK

  • Housing, type of installation: Cylindrical housing
  • Standard housing design, such as the catalogue spindle series (UHS, HV-X, HSX, HSP, …)
Sp_GB_Bauform_HK

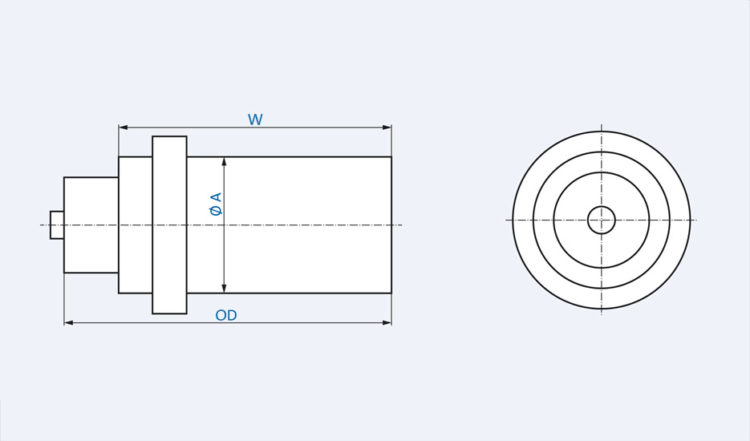

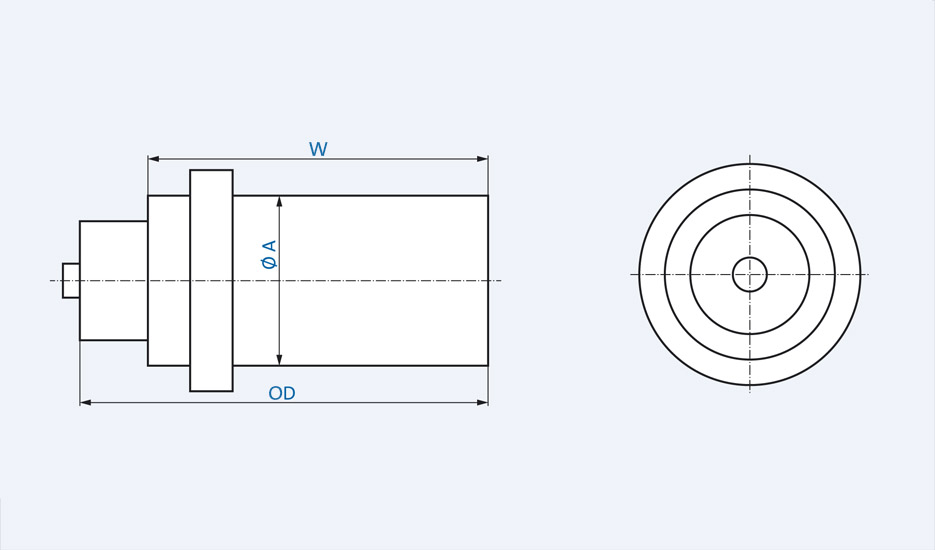

FEATURES: HF

  • Housing, type of installation: Cylindrical housing with flange
  • Like the HK housing design, but with a sleeve flange (GMN standard or customer-specific design)
Spindeln_Bauform-HF

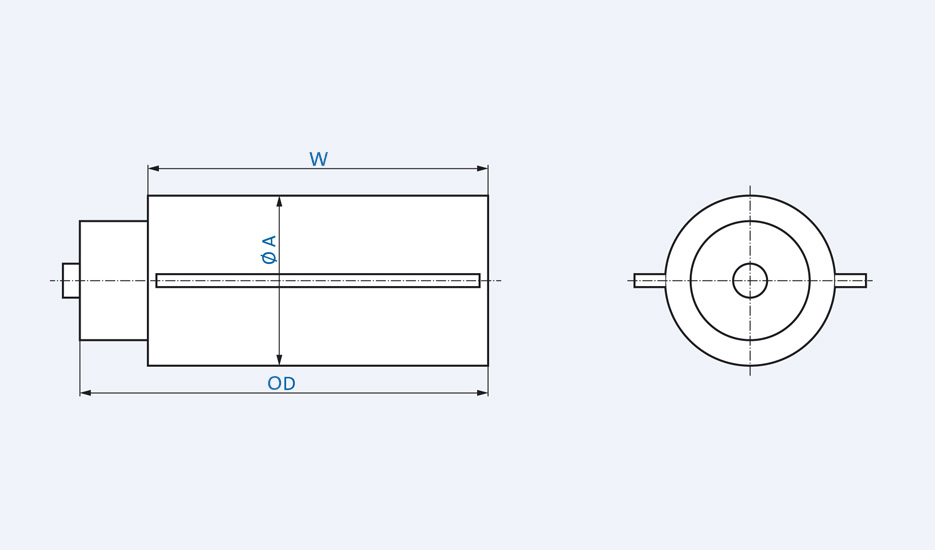

FEATURES: HL

  • Housing, type of installation: Cylindrical housing with attachment strips
  • Like the HK housing design, but with side attachment strips
Spindeln_Bauform-HL

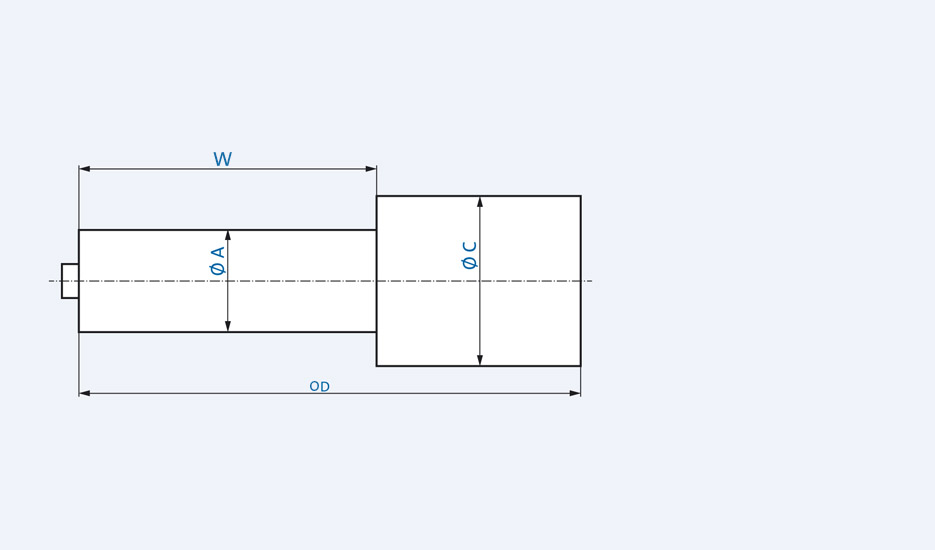

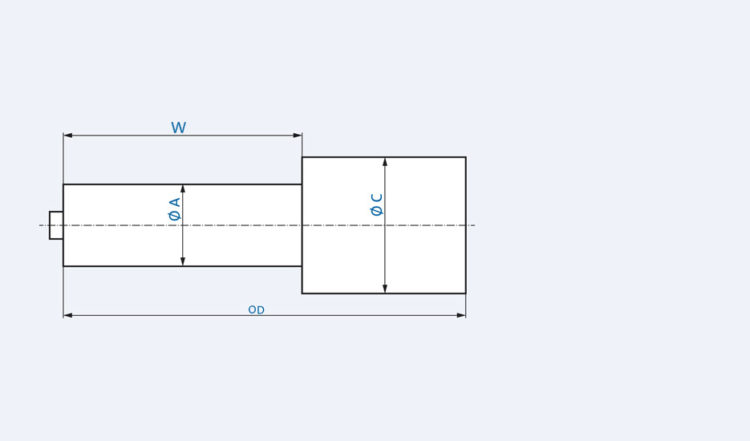

FEATURES: HK-L

  • Housing, type of installation: Cylindrical housing with a long spindle sleeve
  • Like the HK housing design, but with an A/B ratio A/B ≥ 1:2
Spindeln_Bauform-HK-L

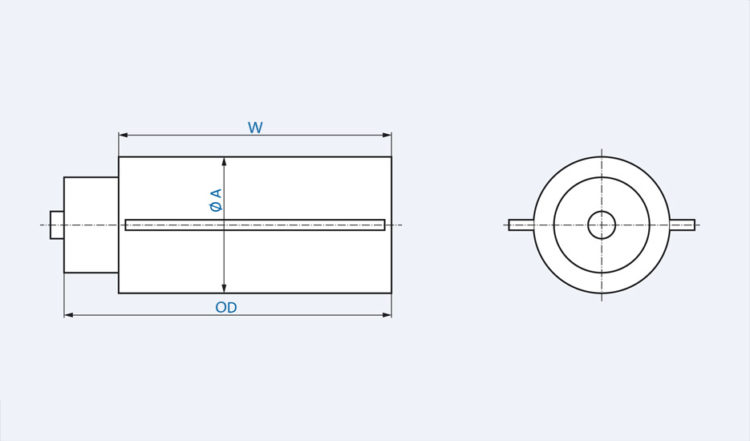

FEATURES: HF-L

  • Housing, type of installation: Cylindrical housing with a flange and long spindle sleeve
  • Like the HF housing design, but with an A/B ratio A/B ≥ 1:2
Spindeln_Bauform-HF-L

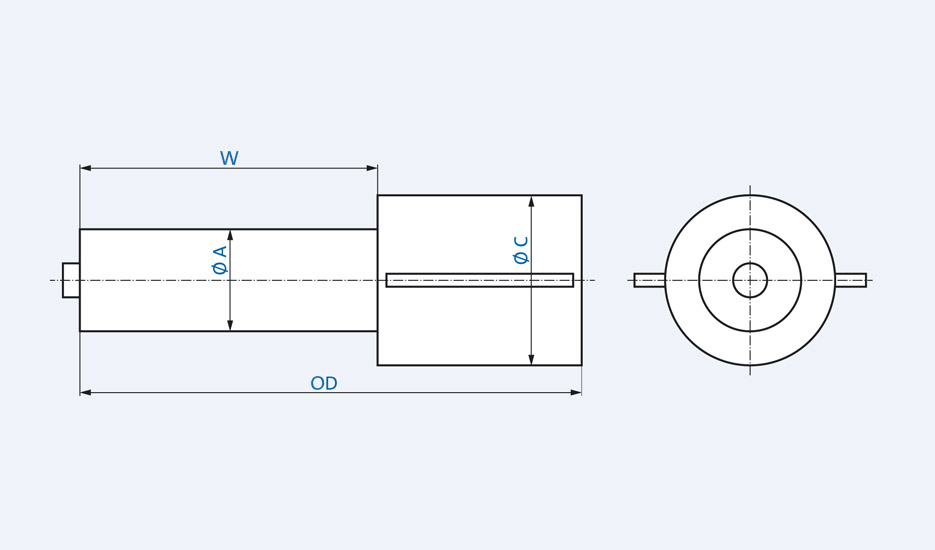

FEATURES: HL-L

  • Housing, type of installation: Cylindrical housing with attachment strips and long spindle housing
  • Like the HK housing design, but with side attachment strips with a diameter of A or C
Spindeln_Bauform-HL-L

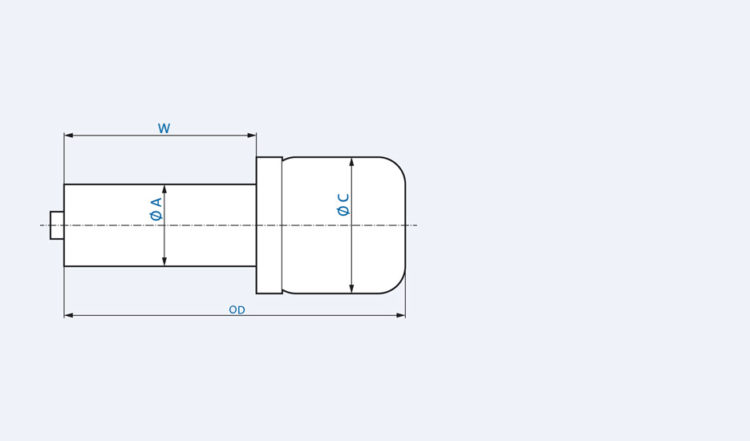

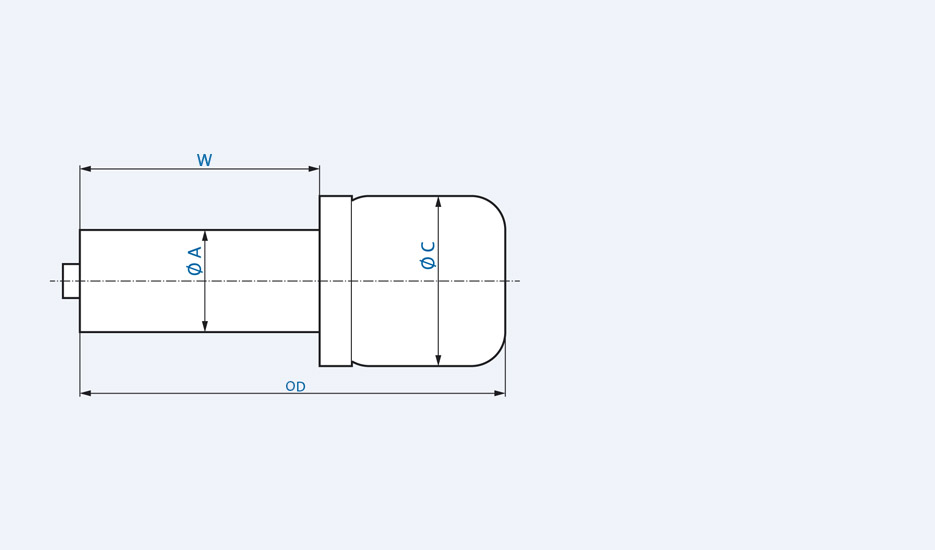

FEATURES: TK-M / TF-M

  • Housing, type of installation: Spindle housing with/without flange mounting and attached motor housing
  • Standard housing shape as the series of spindles (TSEV – air cooled anchoring motor with/without forced ventilation) with/without sleeve flange
Spindeln_Bauform-TK-M

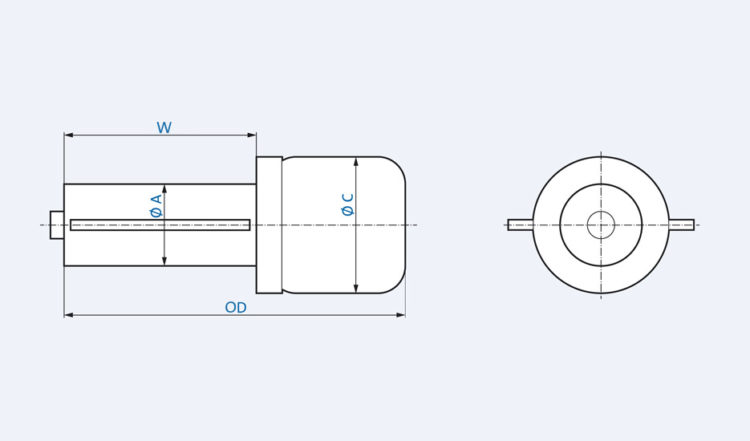

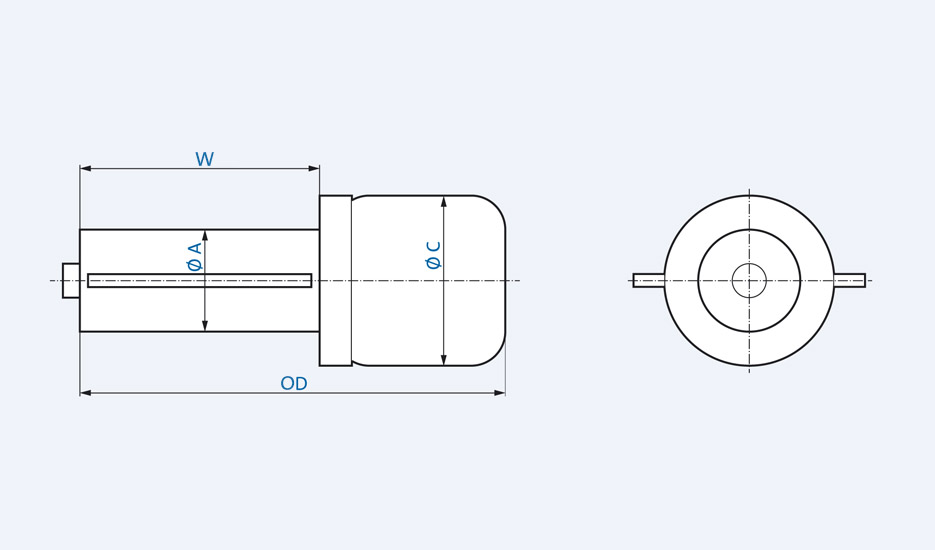

FEATURES: TL-M

  • Housing, type of installation: Spindle housing with mounting brackets and attached motor housing
  • Same as the TK-M or TF-M housing form, but with lateral fixing strips on the diameter A
Spindeln_Bauform-TL-M

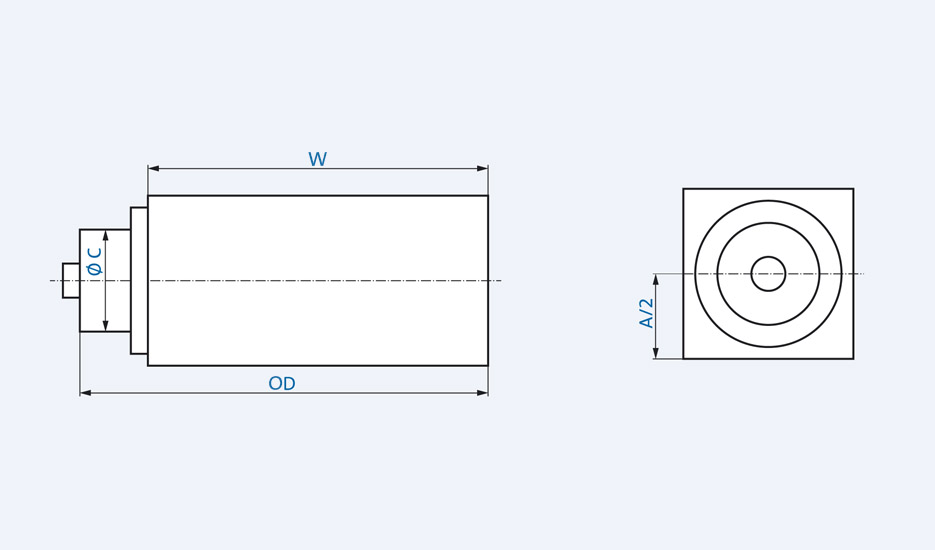

FEATURES: BL

  • Housing, type of installation: Block housing
  • Dimension A/2 is the smallest value, shaft center/housing outer surface (does not necessarily have to be a clamping surface)
Spindeln_Bauform-BL

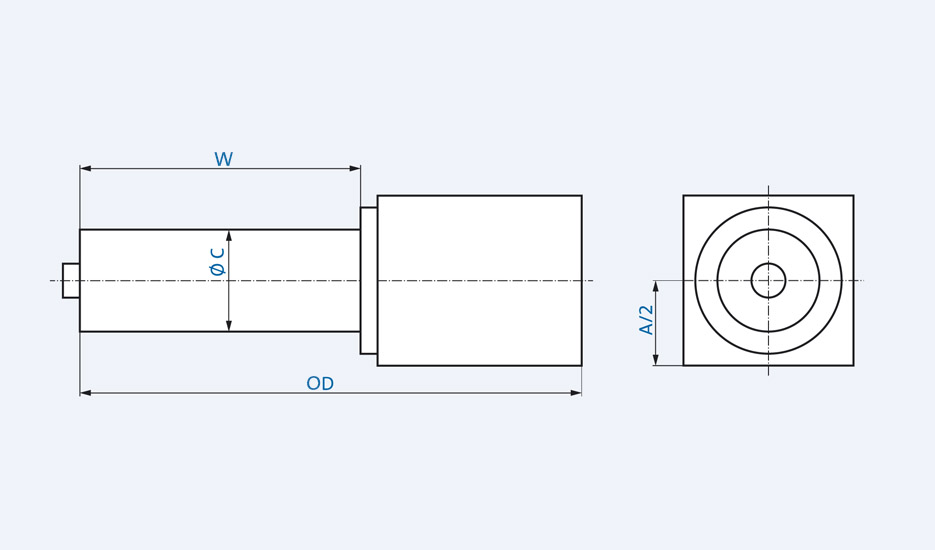

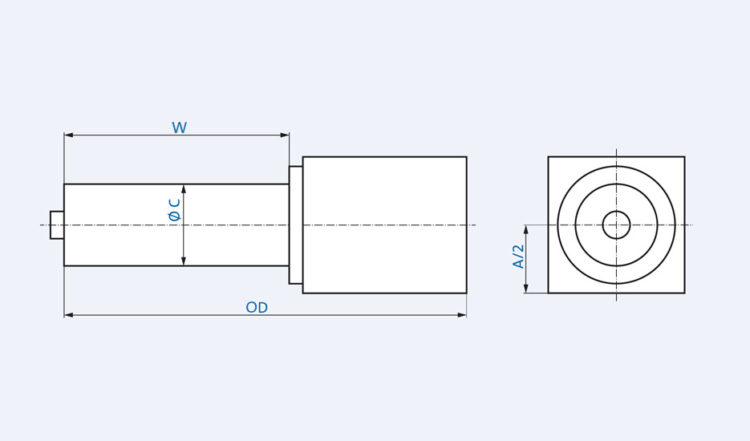

FEATURES: BL-L

  • Housing, type of installation: Block housing with a long spindle sleeve
  • Like the BL housing design, but with a C/B ratio A/B ≥ 1:2
Spindeln_Bauform-BL-L

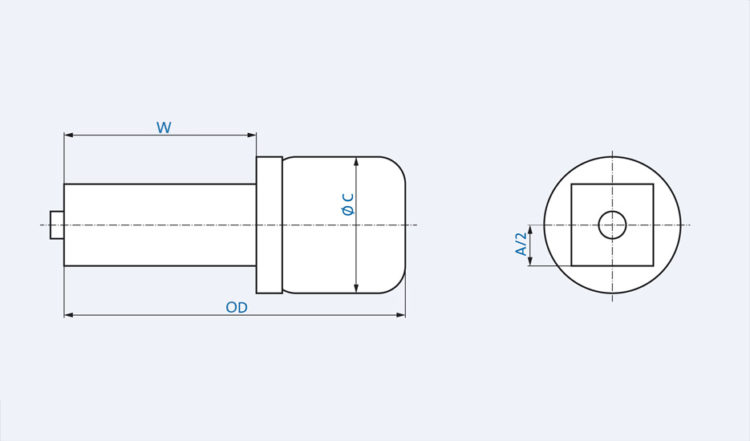

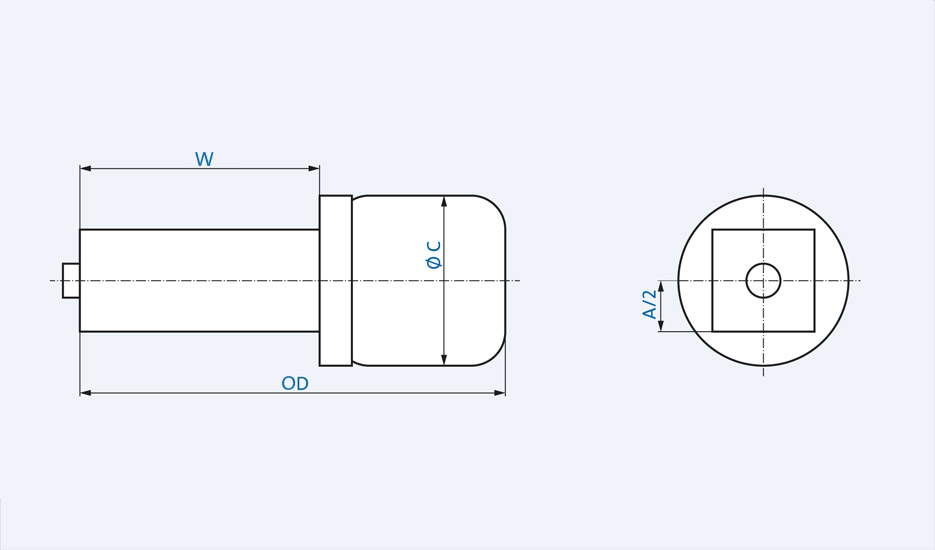

FEATURES: BH-M

  • Housing, type of installation: Block housing with attached motor housing
  • Same as housing design BL-L, but with air-cooled installed motor (like TSEV, with/without external fan)
Spindeln_Bauform-BH-M

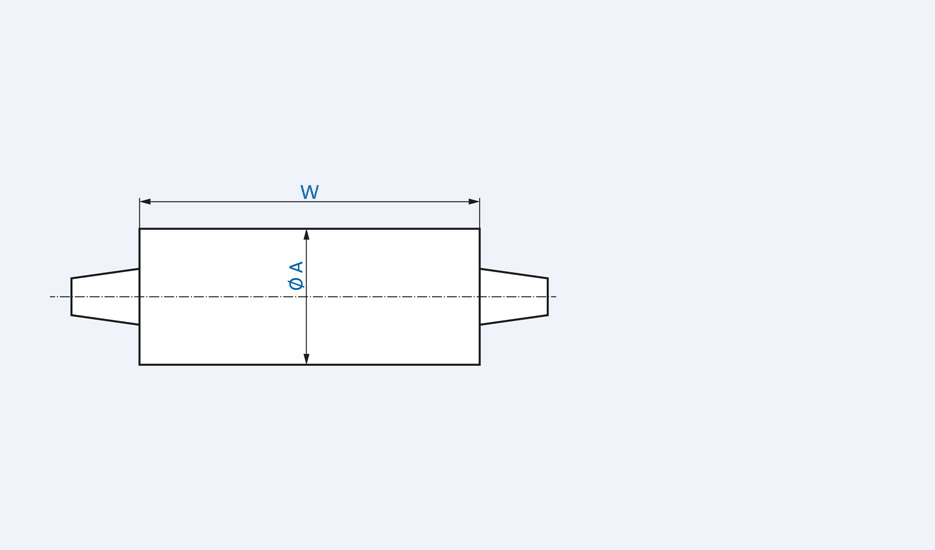

FEATURES: TK

  • Housing, type of installation: Spindle housing (belt spindle)
  • Standard housing shape as the catalog spindle series (TSA, TSI, TSP, …)
Spindeln_Bauform-TK

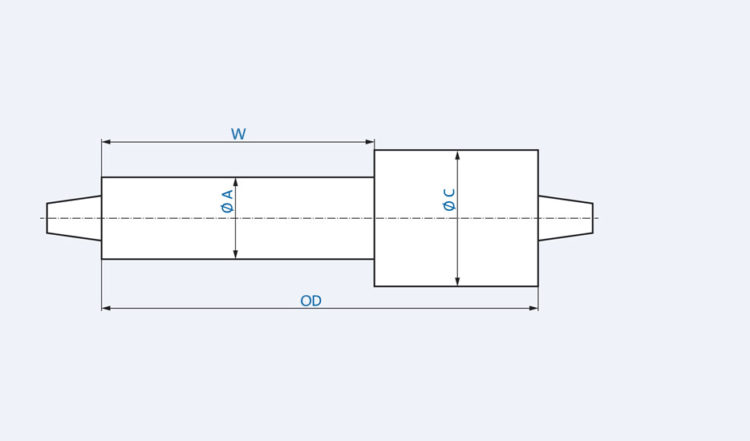

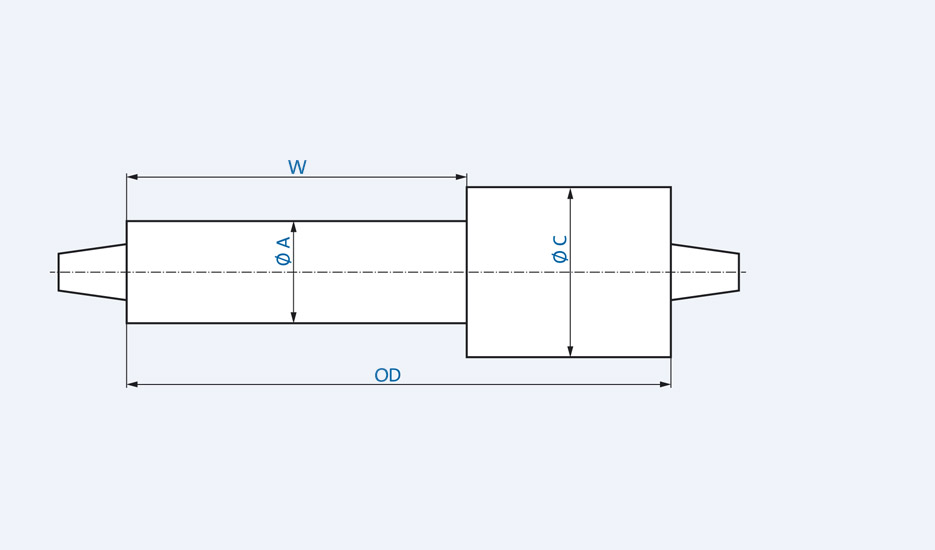

FEATURES: TK-L

  • Housing, type of installation: TSL spindle housing
  • Standard housing form like the catalog spindle series (TSL)
Spindeln_Bauform-TK-L

Note: All dimensions respectively without plugs, fittings and rotational installation, …
