Tool spindles with a motor installed

GMN tool spindles with a motor installed are characterized by their high reliability and operating safety, as well as uncomplicated commissioning. Fixation over the cylindrical sleeve makes it possible to deploy it quickly.

Series

TSE series

With the installed liquid-cooled motor and higher power density for machining tasks with moderate and high speed.



Technical data:

  • Housing diameter: 40 – 160 mm
  • Speed: max. 45.000 RPM
  • Power: S1 max. 40 kW
  • Torque: S1 max. 150 Nm
  • Motor: Asynchronous or synchronous motor
  • Tool interface: HSK-C as well as all standard GMN tool interfaces and special solutions
  • Lubrication: Oil-air lubrication or permanent grease lubrication

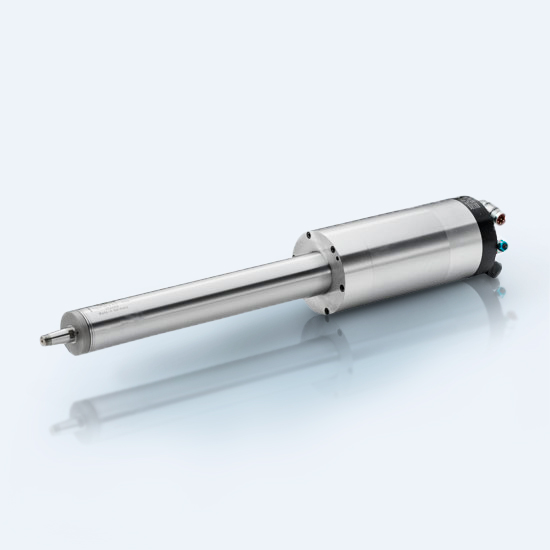

TSE_550x550
TSE_Detail_550x550

TSEV series

With an installed, air-cooled motor, little supply expense, as well as robust bearings and high stiffness specifications for custom machining applications.



Technical data:

  • Housing diameter: 50 / 60 / 80 / 100 / 120 / 140 / 160 mm
  • Speed: max. 24.000 RPM
  • Power: S1 max. 11 kW
  • Motor: Asynchronous motor
  • Tool interface: GMN outer taper
  • Lubrication: Constant grease lubrication

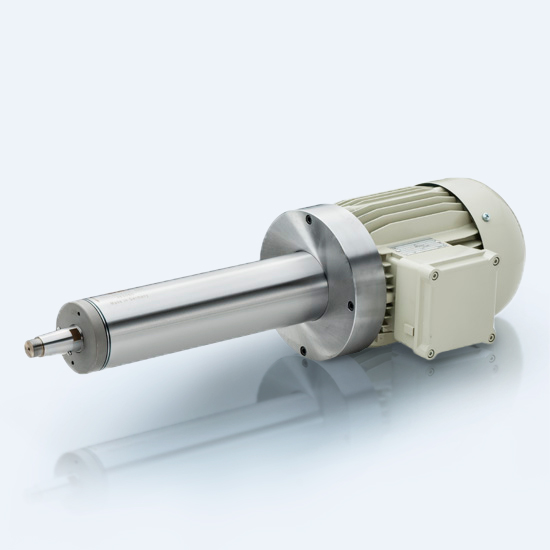

SP_TSEV_TSM_TSK_550x550

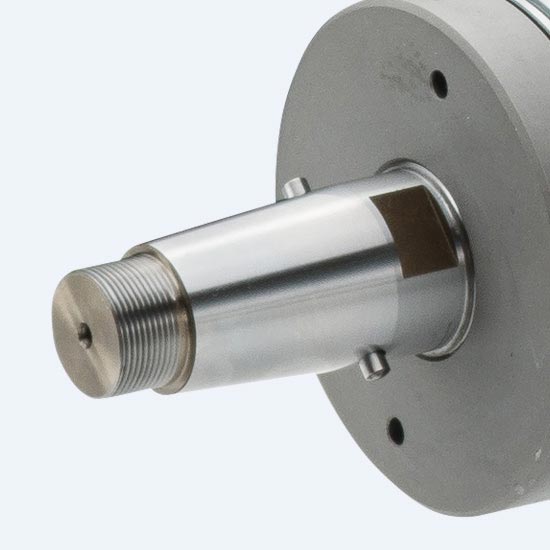

SP_TSEV_TSM_TSK_Detail_550x550

Notice of discontinuation of the TSEV series

Since neither the demands on energy efficiency nor the state of the art met the current standards any longer, the production of the TSEV series (special spindles with an engine for air cooling) was stopped by the middle of 2017.



These spindles will continue to be offered in the future with a motor installed for liquid cooling. GMN will provide the best cooling unit for this. Please give us the engraved serial number for the spindle you are using.
