GMN grinding quills

GMN grinding quills for GMN standard tool interfaces

Grinding quills

GMN manufactures grinding quills with high roundness and flatness precision for all provided GMN standard tool interfaces.

  • GMN grinding quill wheel for interfaces D14 / 23 … D36 / 68; Right turn versions are available at short notice
  • Further dimensions and direction of rotation left on request

Order identification: “Grinding quills” [quill Ø K] x [quill length H] [interface] (Example: grinding quill 16 x 40 D16/28 PS)

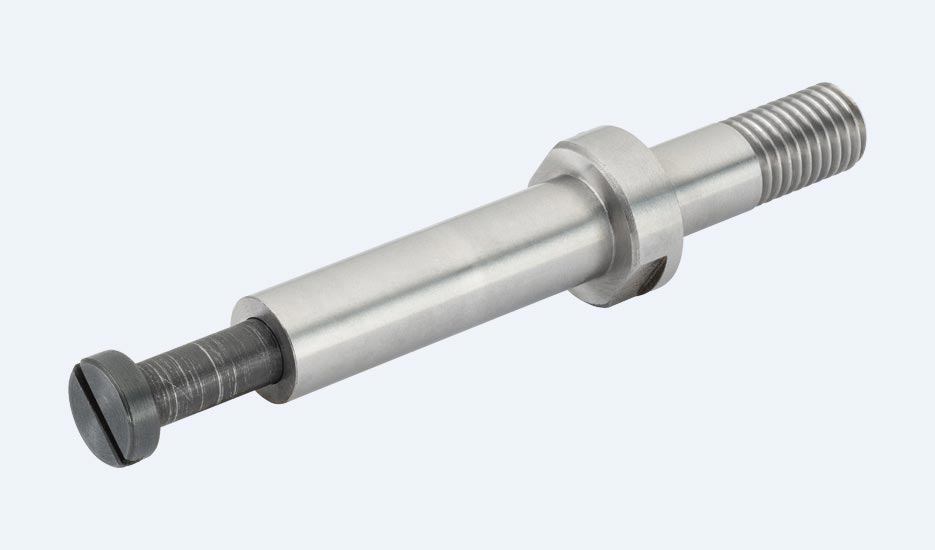

SP_ZU_SC_SC_935x550

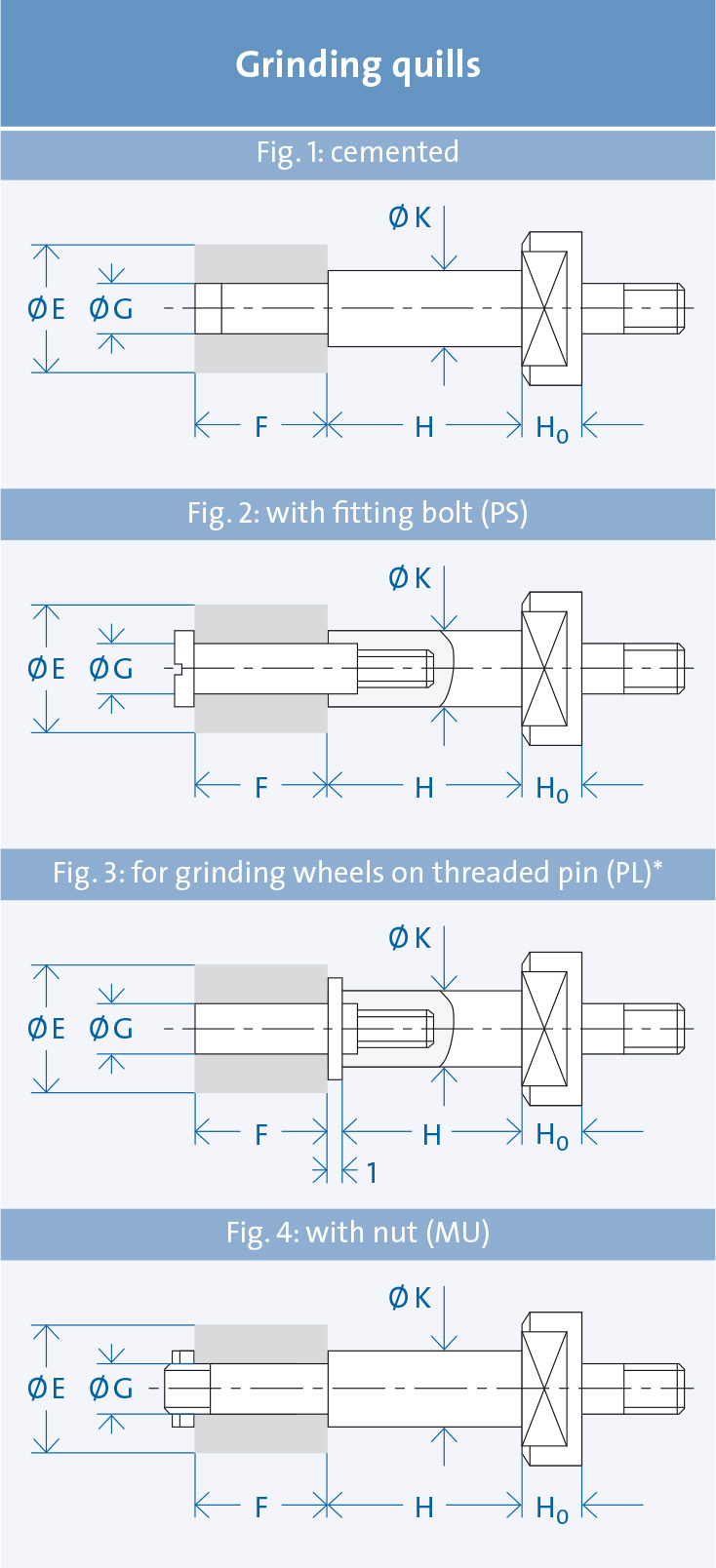

Sp_zu_Schleifdorne1_L_734x1608px

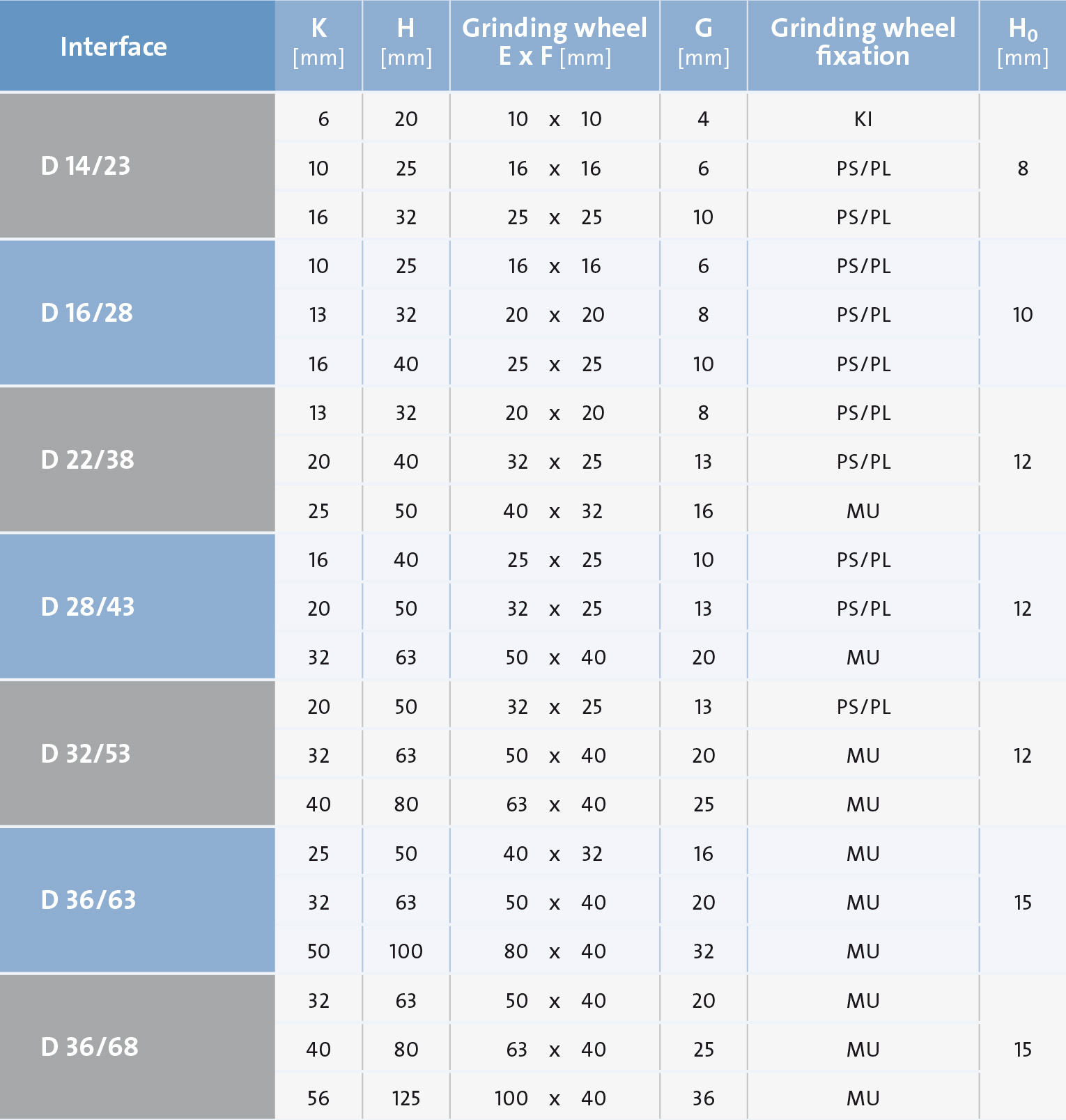

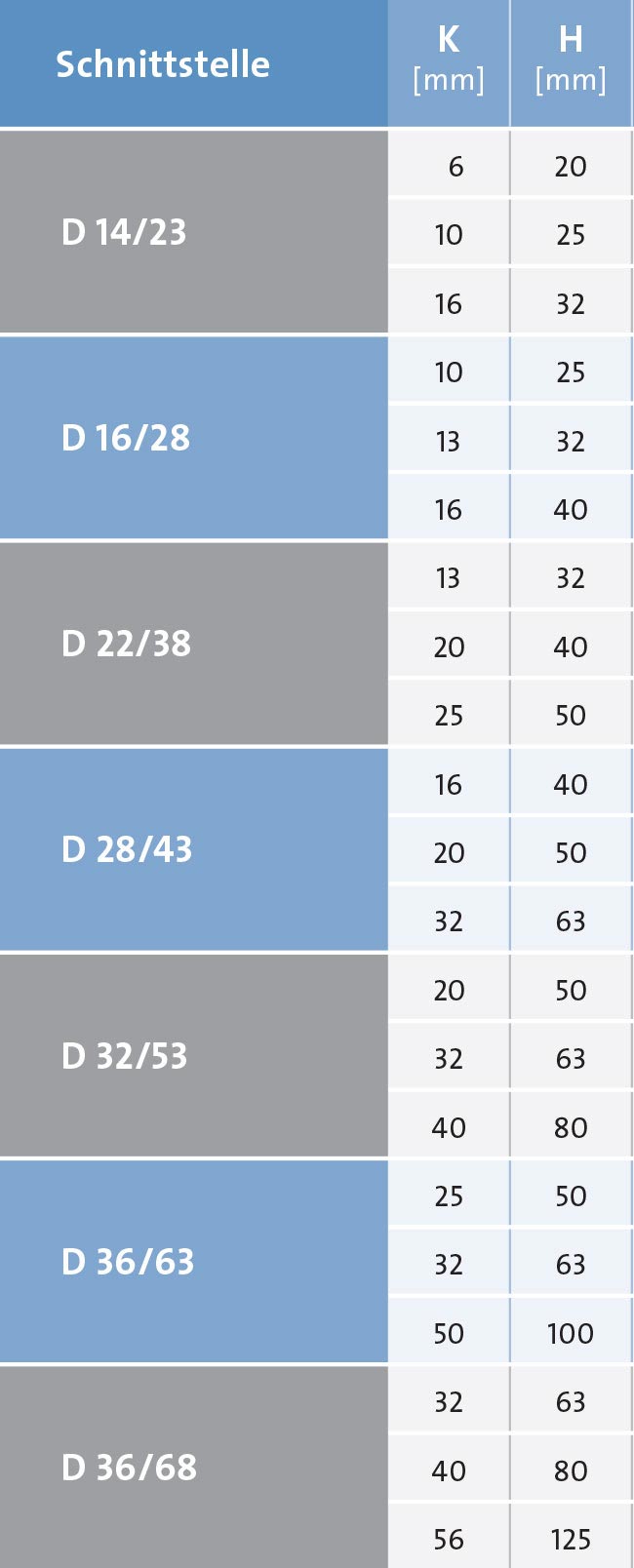

Sp_zu_Schleifdorne2_R_1530x1608px SP_ZU_SC_Schleifdornaufnahme_2mobile_650x1608
Blindfeld_734x1

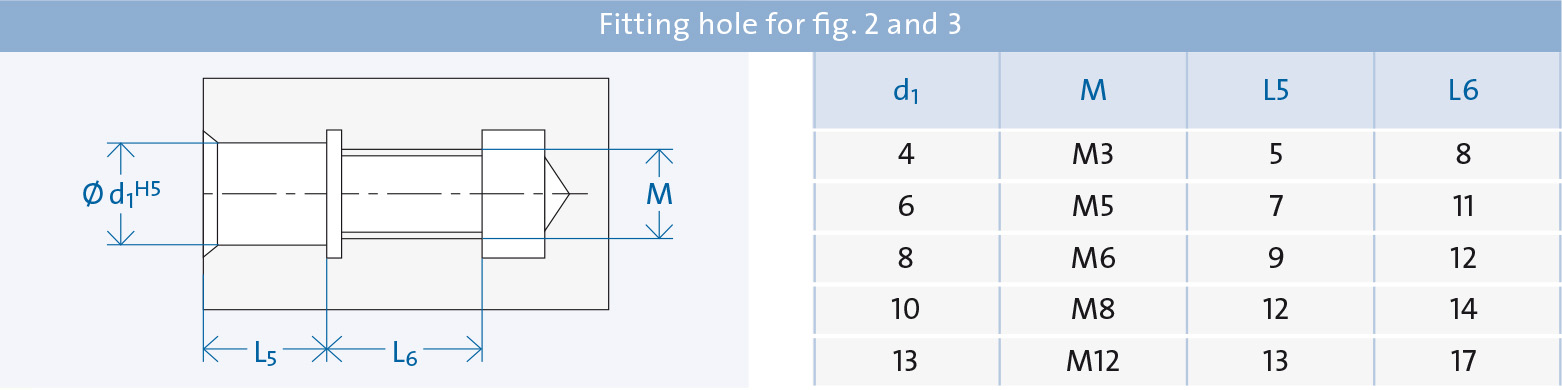

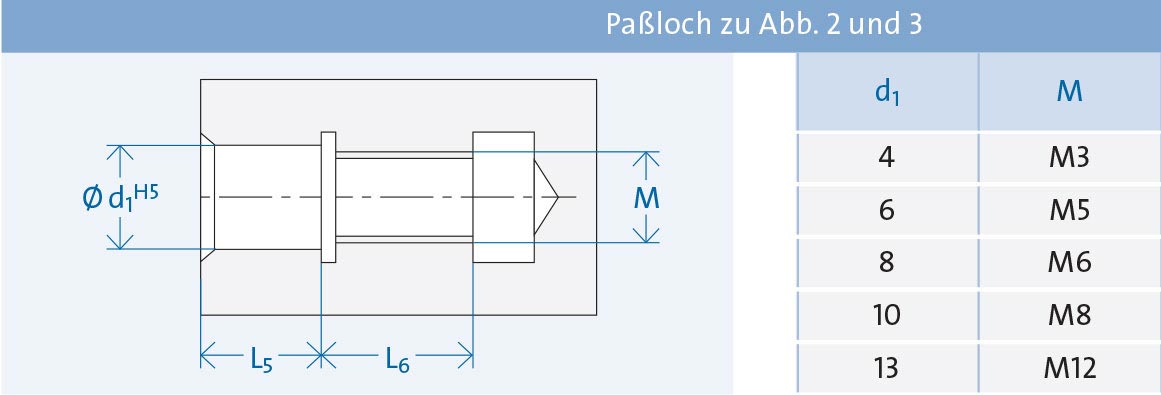

Fitting bore as in Fig. 2 and 3
Sp_zu_Schleifdorne3_1530x390px SP_ZU_SC_Schleifdornaufnahme_3mobile_1161x395

SEMI-FINISHED PRODUCTS

GMN semi-finished products allow the individual adaptation of the tool interface for any connections.

  • GMN grinding quill wheel for interfaces D08 / 14 … D36 / 63; Right turn versions are available at short notice
  • Further dimensions and direction of rotation left on request

Order identification: “Semi-finished Product” [quill Ø K] x [quill length H] [interface] (Example: Semi-finished product 34 x 180 D16/33)

SP_Zubhör_Teaser_Schleifdorne_935x550

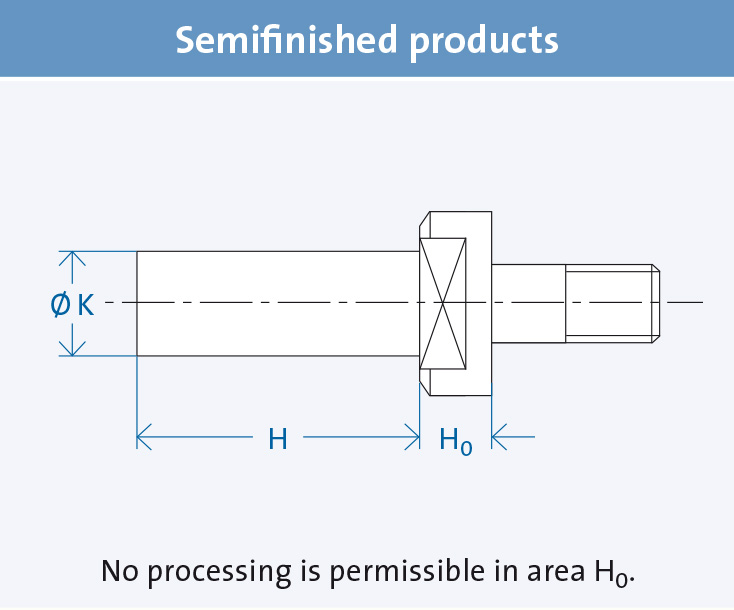

Sp_zu_Schleifdorne4_735x610px

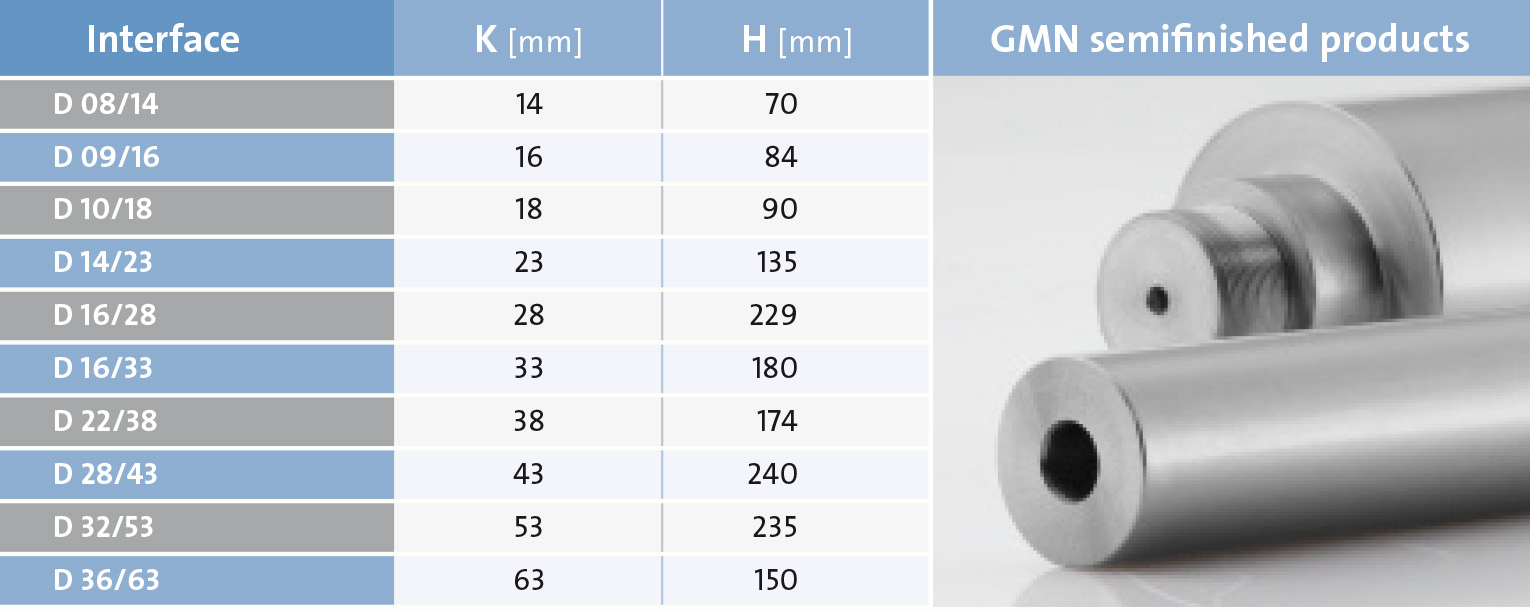

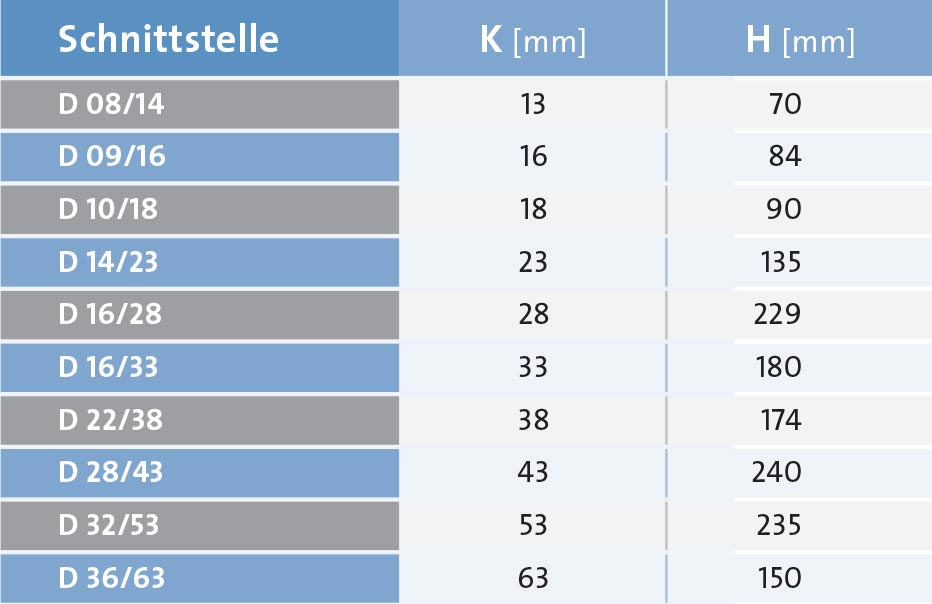

Sp_zu_Schleifdorne5_1530x610px SP_ZU_SC_Halbfertig_2mobile_932x604

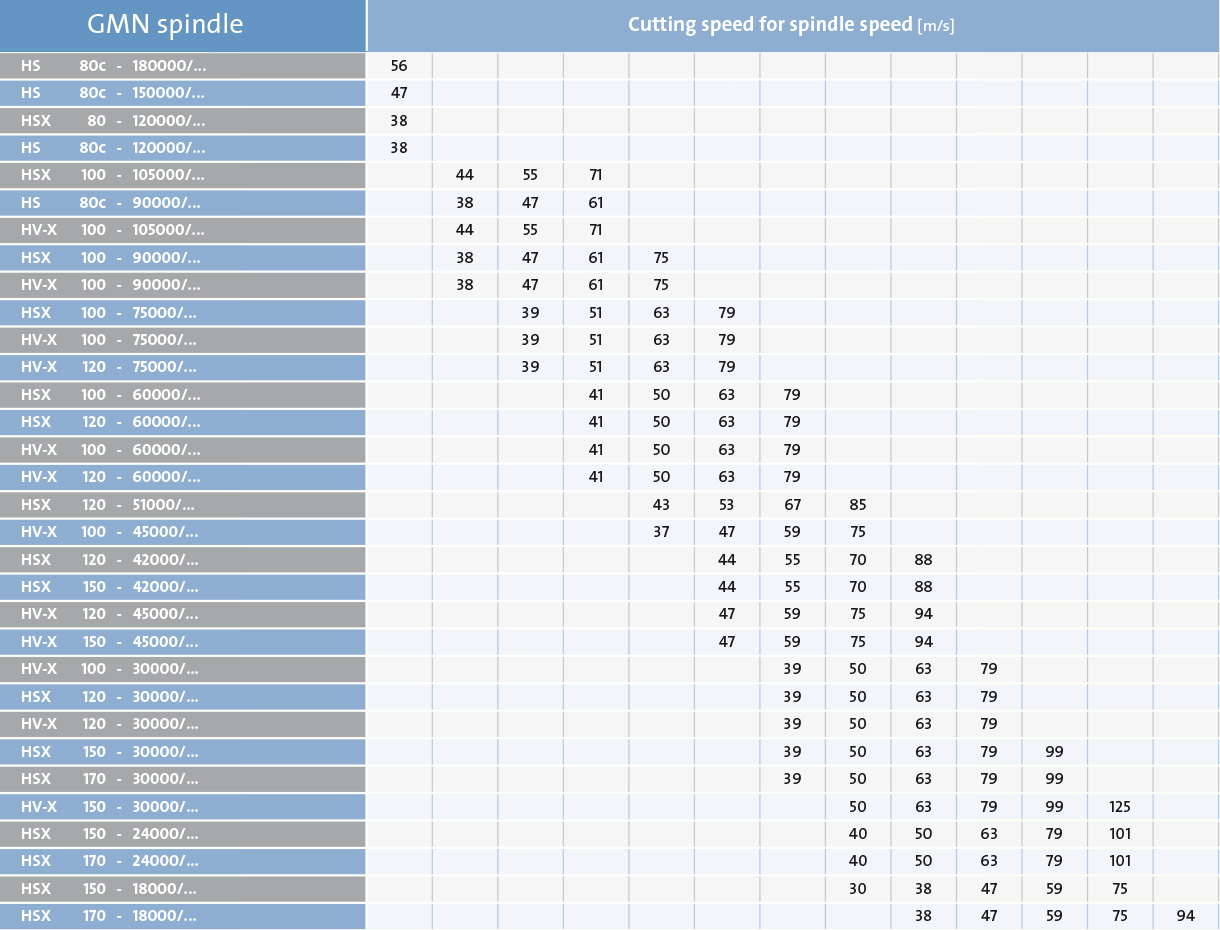

Spindle/grinding quill selection for GMN standard tool interface

Sp_zu_Schleifdorne8_1220x930

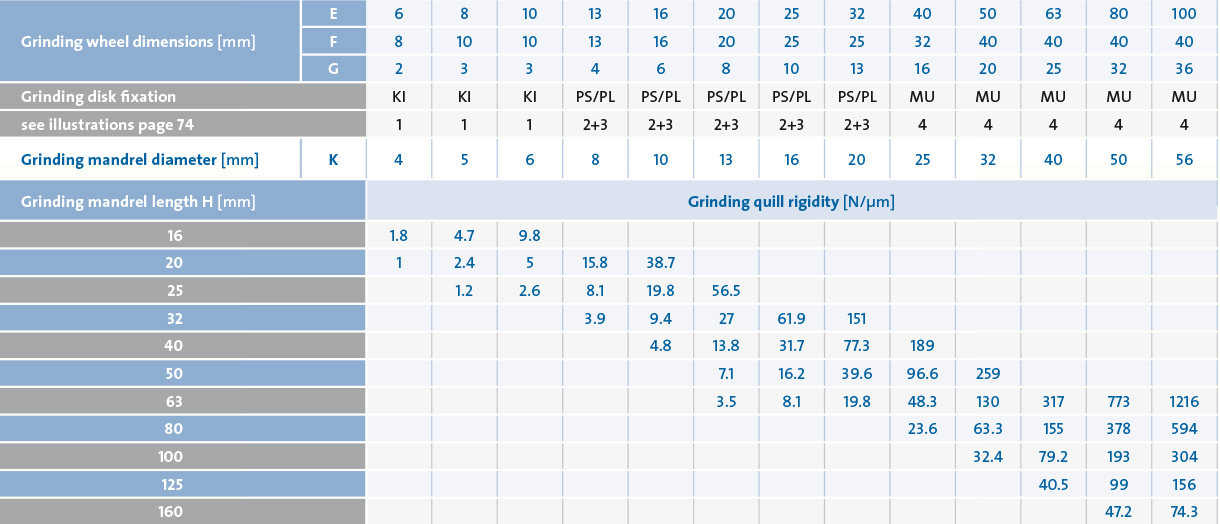

Sp_zu_Schleifdorne9_1220x524

GMN grinding quill for HSK interfaces

SEMI-FINISHED PRODUCTS

GMN Semi-finished products allow the individual adaption of the tool interface for any connections.

  • GMN semi-finished products for interfaces: HSK-C25 … HSK-C100 as per DIN 69893-1 are available at short notice
  • Further dimensions are available upon request

Order identification: “Semi-finished Product” [quill Ø K] x [quill length H] [interface] (Example: Semi-finished product 81 x 186 HSK-C63)

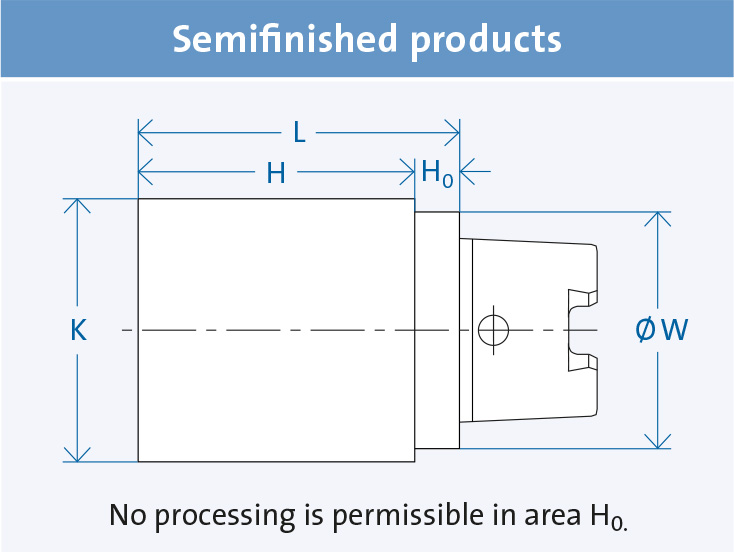

Sp_zu_Schleifdorne10_735x552

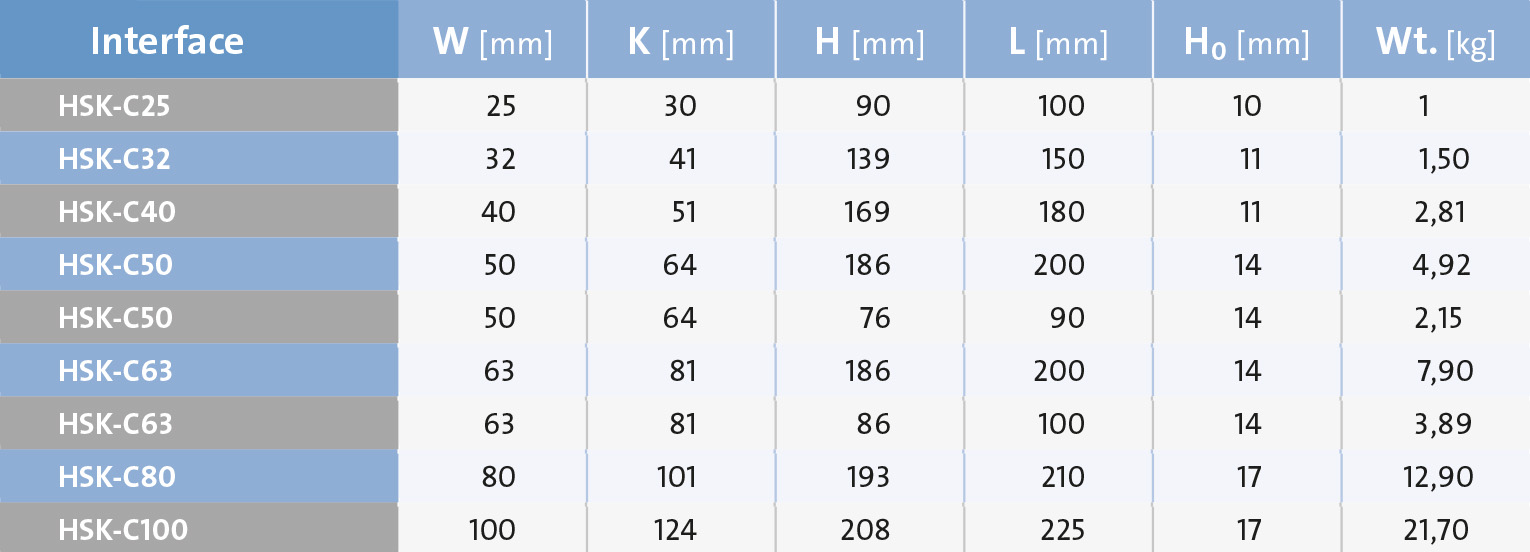

Sp_zu_Schleifdorne11_1530x552 SP_ZU_SC_HKS_Halbfabrikate_2_1534x533
