Cables & plugs

Cables

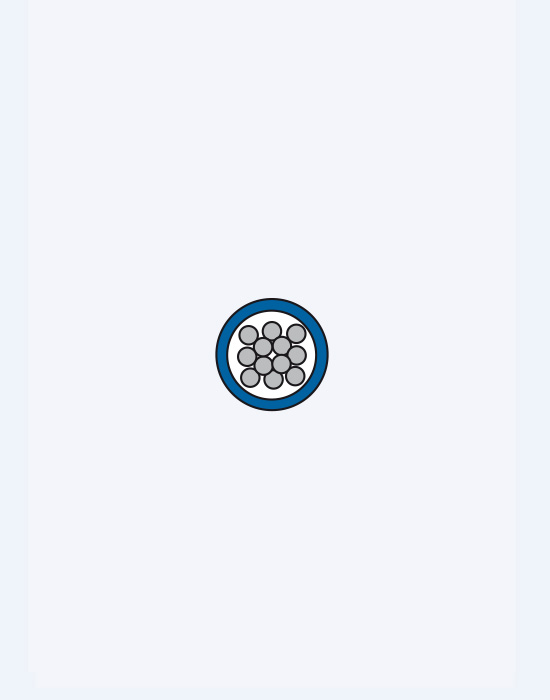

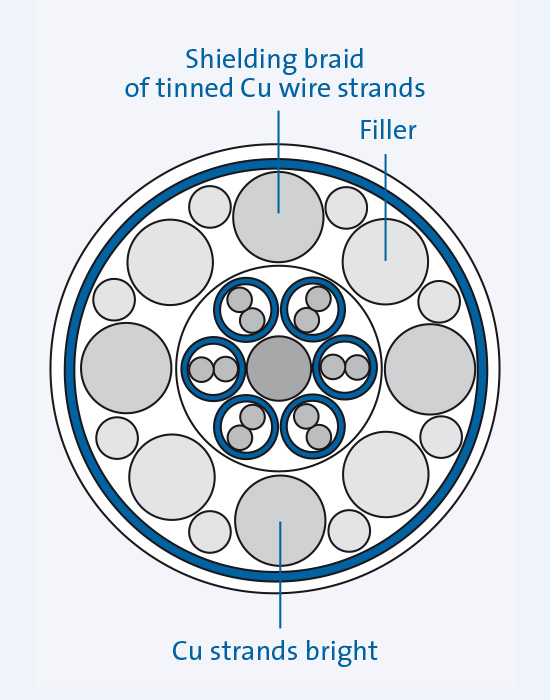

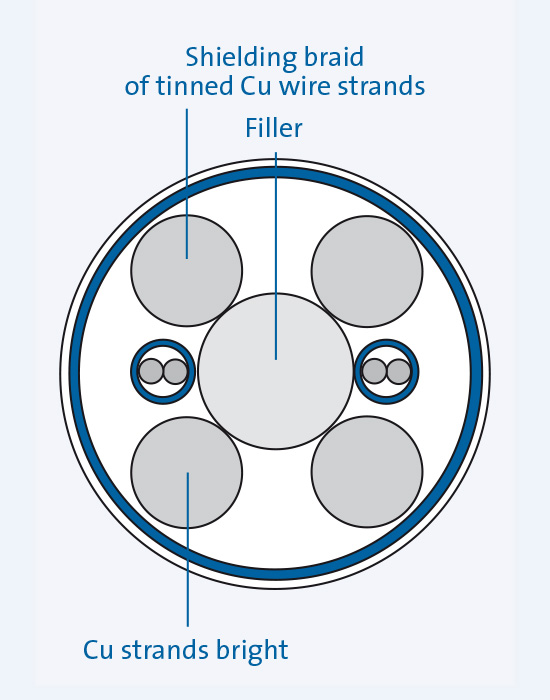

GMN supplies towed chain UL and CSA-approved electrical cables for the electrical spindle-to-inverter connection.

Sp_Zu_Kabel2_550x700
Sp_Zu_Kabel1_550x700
Sp_Zu_Kabel3_550x700
Sp_Zu_Ka_Kabelfoto

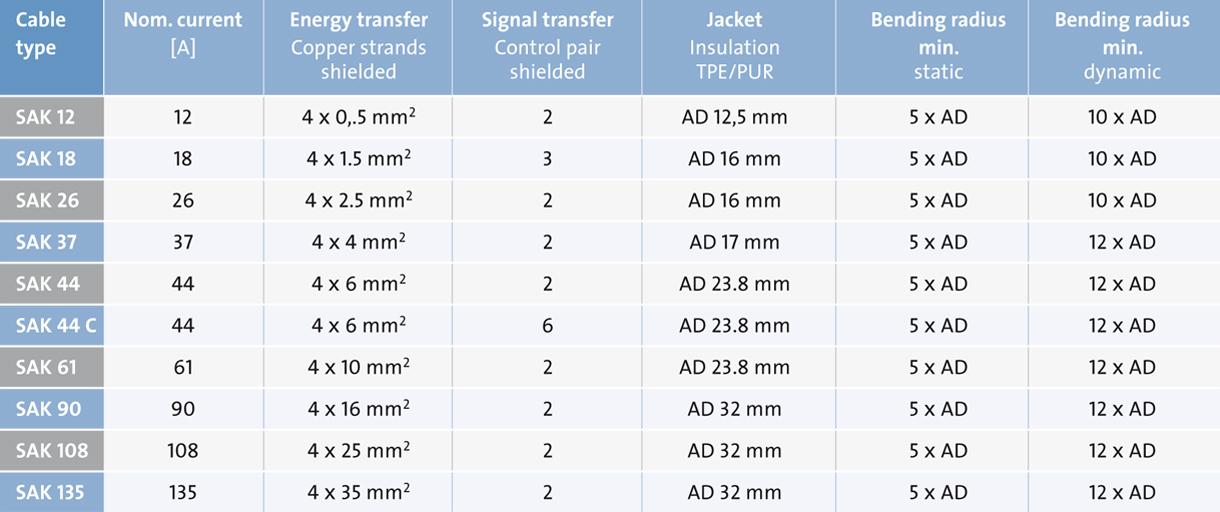

SAK 12 ... cable type 135

Sp_Zu_Ka_Tabelle_SAK12-135

STK wear-resistant cable type, oil and gasoline-resistant

Sp_Zu_Ka_Tabelle_STK

The wire lengths must be limited in order to achieve the statutorily prescribed electromagnetic tolerance.
The appropriate EMC rules and guidelines must be adhered to in layout and commissioning.

Plugs

GMN high-speed spindles are equipped atrated current with different plug connections – Flange sockets
and plugs. On request, pre-assembled cables with B048-, B049-, GA-, MAC-, D500- and STK plugs are available.

Power cables

Sp_Zu_St_Leistungsleit_B048
B048 connector: up to 30 A; Cable cross section 4 mm2



Sp_Zu_St_Leistungsleit_B049
B049 connector: up to 30 A; Cable cross section 4 mm2
m39_image
GA connector: up to 44 A; Cable cross section 6 mm2
MAC connector: up to 100 A; Cable cross section 25 mm2
m39_image
D500 connector: up to 150 A; Cable cross section 50 mm2

Signal wires

Sp_Zu_St_Signalleit_STK
STK plug connectors: Cable cross section 1 mm2



Sp_Zu_St_Signalleit_DWG-Flanschdose
Rotary angle encoder flange socket: Cable cross-section: 1.5 mm2
