Cables & Plugs

CABLES

For the spindle/converter connection, GMN supplies UL/CSA approved electrical cables suitable for use in drag chains.

Sp_Zu_Ka_SAK44C
Sp_Zu_Ka_SAK12-135
Sp_Zu_Ka_STK
Sp_Zu_Ka_Kabelfoto

CABLE TYPE SAK 12 ... 135

Sp_Zu_Ka_Tabelle_SAK12-135

Cable type STK abrasion resistant, oil and gasoline resistant

Sp_Zu_Ka_Tabelle_STK

Conductor lengths must be limited to meet statutory electromagnetic compatibility requirements. The layout and operation must be in compliance with applicable EMC laws and directives.

PLUGS

GMN high-speed spindles are equipped with plug-in connectors
- with flanged socket and plug - which differ according to nominal current.
Ready-made cables with B048, B049, GA, MAC, D500 and STK plugs are available on request.

POWER CABLES

Sp_Zu_St_Leistungsleit_B048
B048 plug-in connection: up to 30 A; cable cross section 4 mm2



Sp_Zu_St_Leistungsleit_B049
B049 plug-in connection: up to 30 A; cable cross section 4 mm2
m39_image
GA plug-in connection: up to 44 A; cable cross section 6 mm2
MAC plug-in connection: up to 100 A; cable cross section 25 mm2
m39_image
D500 plug-in connection: up to 150 A; cable cross section 50 mm2

SIGNAL LINES

Sp_Zu_St_Signalleit_STK

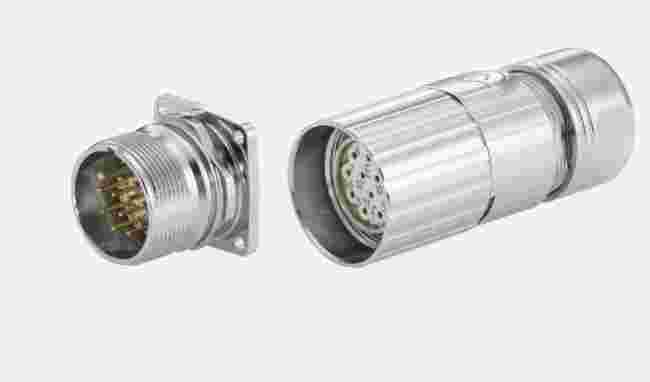

STK plug-in connection: Cable cross-section 1 mm2



Sp_Zu_St_Signalleit_DWG-Flanschdose

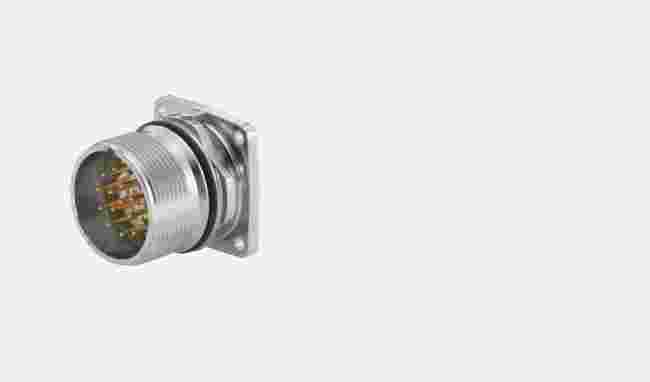

Rotary encoder flanged socket: Cable cross-section 1.5 mm2
