Complete freewheel clutch units

GMN complete freewheel clutch units are particularly suited for high torque requirements. The FPD, FND, RA, FP and FN series are characterized by an integrated ball bearing and an additional roller bearing (fixed and floating bearing) and are also optionally available pre-lubricated with sealing rings. All GMN complete freewheel clutch units can be used as indexing clutches, backstops or as overrunning clutches.

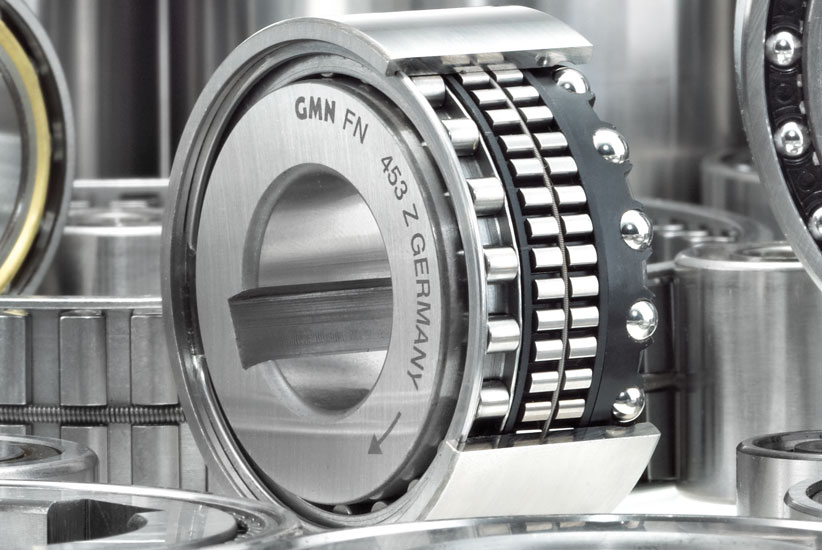

FL_M30a_Komplettfreiläufe_822x550

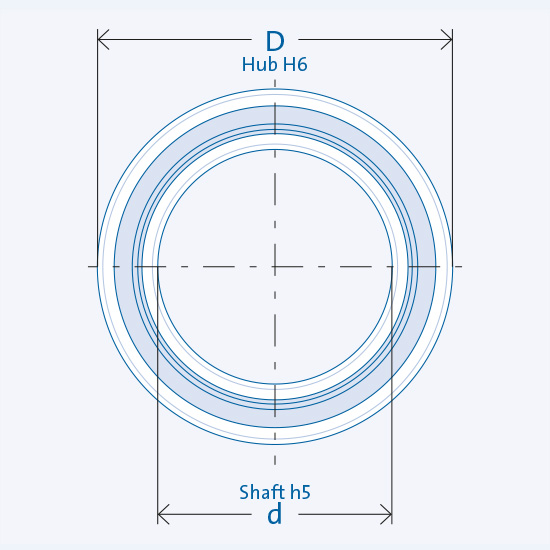

Complete freewheel clutch unit FPD

The freewheel clutches in the FPD series are complete freewheel clutch units sealed on both sides and have a press fit connection.



Characteristics
  • Width: 34 mm
  • Operating temperature: max. 100 °C
  • Lubrication: operative lifetime oil lubrication
fp-453z-geschl_2

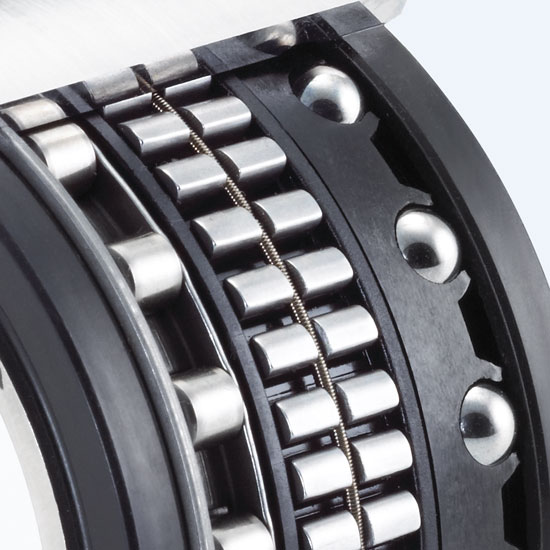

FL_Detail_KOFL_3

Components

  • Insert element*

    FE 400 M (meander spring) / FE 400 Z (tension spring)

  • Raceways

    Bearing steel, hardened and ground

  • Inner ring

    Press fit

  • Outer ring

    Press fit

  • Ball bearing

    integrated

  • Roller bearing

    RL 400

  • Lubrication

    Lifetime oil lubrication

  • Seal

    GMN rubber seal

* Available with either freewheel clutch insert element FE 400 M (meander spring) or FE 400 Z (tension spring).

15 - 20 mm Inner diameter

ALLE WIEDER EINBLENDEN
Inner diameter
ID
[mm]
Outer diameter
OD
[mm]
Width
W
[mm]
Torque
Tnom
[Nm]
Rotation speed
nmax
[rpm]
Dynamic load capacity
Cdyn.
[N]
Static load capacity
Cstat.
[N]
Weight
kg
[kg]
Item no.
Data sheets
FPD 427 M
15
31
34
94
2000
7679
6397
0.09
306516
FPD 427 Z
15
31
34
84
2000
7679
6397
0.09
306517
FPD 432 M
20
36
34
133
1800
8104
7241
0.12
306518
FPD 432 Z
20
36
34
121
1800
8104
7241
0.12
306519

25 - 30 mm Inner diameter

ALLE WIEDER EINBLENDEN
Inner diameter
ID
[mm]
Outer diameter
OD
[mm]
Width
W
[mm]
Torque
Tnom
[Nm]
Rotation speed
nmax
[rpm]
Dynamic load capacity
Cdyn.
[N]
Static load capacity
Cstat.
[N]
Weight
kg
[kg]
Item no.
Data sheets
FPD 437 M
25
41
34
176
1700
9201
8142
0.15
306520
FPD 437 Z
25
41
34
160
1700
9201
8142
0.15
306521
FPD 442 M
30
46
34
223
1500
10247
10708
0.19
300696
FPD 442 Z
30
46
34
208
1500
10247
10708
0.19
300697

35 - 40 mm Inner diameter

ALLE WIEDER EINBLENDEN
Inner diameter
ID
[mm]
Outer diameter
OD
[mm]
Width
W
[mm]
Torque
Tnom
[Nm]
Rotation speed
nmax
[rpm]
Dynamic load capacity
Cdyn.
[N]
Static load capacity
Cstat.
[N]
Weight
kg
[kg]
Item no.
Data sheets
FPD 448 M
35
53
34
286
1300
11642
13440
0.23
306524
FPD 448 Z
35
53
34
262
1300
11642
13440
0.23
306525
FPD 453 Z
40
58
34
314
1200
11417
13577
0.2648
300700
FPD 453 M
40
58
34
343
1200
11417
13577
0.2648
300702

50 - 60 mm Inner diameter

ALLE WIEDER EINBLENDEN
Inner diameter
ID
[mm]
Outer diameter
OD
[mm]
Width
W
[mm]
Torque
Tnom
[Nm]
Rotation speed
nmax
[rpm]
Dynamic load capacity
Cdyn.
[N]
Static load capacity
Cstat.
[N]
Weight
kg
[kg]
Item no.
Data sheets
FPD 463 M
50
68
34
461
1100
13070
17063
0.34
306534
FPD 463 Z
50
68
34
428
1100
13070
17063
0.34
306535
FPD 473 M
60
78
34
588
1000
14128
19896
0.41
306536
FPD 473 Z
60
78
34
543
1000
14128
19896
0.41
306537

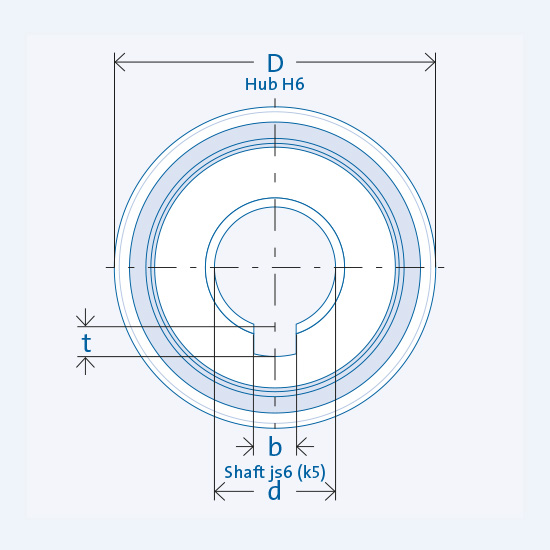

Complete freewheel clutch unit FND

The freewheel clutches in the FND series are complete freewheel clutch units sealed on both sides with a keyway connection at the inner ring and a press fit connection on the outer ring.

Characteristics
  • Width: 34 mm
  • Operating temperature: max. 100 °C
  • Lubrication: operative lifetime oil lubrication
fnd-435z-geschl_2
FL_Detail_KOFL_3

Components

  • Insert element*

    FE 400 M (meander spring) / FE 400 Z (tension spring)

  • Raceways

Bearing steel, hardened and ground

  • Inner ring

    Keyway per DIN 6885, Sheet 1, Tolerance: P9 with back clearance

  • Outer ring

    Press fit

  • Ball bearing

    integrated

  • Roller bearing

RL 400

  • Lubrication

    Lifetime oil lubrication

  • Seal

GMN rubber seal

* Available with either freewheel clutch insert element FE 400 M (meander spring) or FE 400 Z (tension spring).

15 - 25 mm Inner diameter

ALLE WIEDER EINBLENDEN
Inner diameter
ID
[mm]
Outer diameter
OD
[mm]
Width
W
[mm]
Torque
Tnom
[Nm]
Rotation speed
nmax
[rpm]
Dynamic load capacity
Cdyn.
[N]
Static load capacity
Cstat.
[N]
Weight
kg
[kg]
Keyway width
b
[mm]
Keyway depth
t
[mm]
Item no.
Data sheets
FND 437 M
15
41
34
176
1700
8962
8661
0.235
5
2,3
300737
FND 437 Z
15
41
34
161
1700
8962
8661
0.235
5
2,3
300738
FNDS 437 Z
16
41
34
161
1700
8962
8661
0.235
5
2,3
300739
FND 442 M
20
46
34
223
1500
10247
10708
0.276
6
2,8
300743
FND 442 Z
20
46
34
208
1500
10247
10708
0.276
6
2,8
300744
FNDS 442 M
22
46
34
223
1500
10247
10708
0.276
6
2,8
300746
FND 453 M
25
58
34
343
1200
11417
13577
0.461
8
3,3
300751
FND 453 Z
25
58
34
314
1200
11417
13577
0.458
8
3,3
300752

30 - 35 mm Inner diameter

ALLE WIEDER EINBLENDEN
Inner diameter
ID
[mm]
Outer diameter
OD
[mm]
Width
W
[mm]
Torque
Tnom
[Nm]
Rotation speed
nmax
[rpm]
Dynamic load capacity
Cdyn.
[N]
Static load capacity
Cstat.
[N]
Weight
kg
[kg]
Keyway width
b
[mm]
Keyway depth
t
[mm]
Item no.
Data sheets
FND 459 M
30
64
34
411
1100
12691
16320
0.546
8
3,3
300758
FND 459 Z
30
64
34
381
1100
12691
16320
0.546
8
3,3
300760
FND 463 M
35
68
34
462
1100
13070
17063
0.6
10
3,3
306528
FND 463 Z
35
68
34
428
1100
13070
17063
0.6
10
3,3
306529

40 - 45 mm Inner diameter

ALLE WIEDER EINBLENDEN
Inner diameter
ID
[mm]
Outer diameter
OD
[mm]
Width
W
[mm]
Torque
Tnom
[Nm]
Rotation speed
nmax
[rpm]
Dynamic load capacity
Cdyn.
[N]
Static load capacity
Cstat.
[N]
Weight
kg
[kg]
Keyway width
b
[mm]
Keyway depth
t
[mm]
Item no.
Data sheets
FND 470 M
40
75
34
550
1000
14050
19840
0.692
12
3,3
300765
FND 470 Z
40
75
34
509
1000
14050
19840
0.692
12
3,3
300766
FND 473 M
45
78
34
588
1000
14128
19896
0.73
14
3,8
306532
FND 473 Z
45
78
34
543
1000
14128
19896
0.73
14
3,8
306533

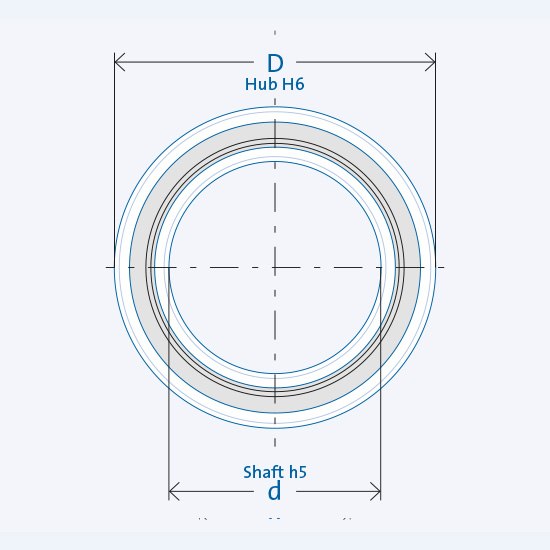

Complete freewheel clutch unit FP

The freewheel clutches in the FP series are not sealed and have a press fit connection.



Characteristics:
  • Width: 27 mm
  • Operating temperature: max. 140 °C (higher temperatures on request)
  • Lubrication: oil or grease lubrication, delivered with corrosion protection, operative grease filling on request
fp-453z-geschl_2
FL_Detail_KOFL_3

Components

  • Insert element*

    FE 400 M (meander spring) / FE 400 Z (tension spring)

  • Raceways

    Bearing steel, hardened and ground

  • Inner ring

    Press fit

  • Outer ring

    Press fit

  • Ball bearing

integrated

  • Roller bearing

RL 400

  • Lubrication

  • Seal

           —

* Available with either freewheel clutch insert element FE 400 M (meander spring) or FE 400 Z (tension spring).

10 - 20 mm Inner diameter

ALLE WIEDER EINBLENDEN
Inner diameter
ID
[mm]
Outer diameter
OD
[mm]
Width
W
[mm]
Torque
Tnom
[Nm]
Rotation speed
nmax
[rpm]
Dynamic load capacity
Cdyn.
[N]
Static load capacity
Cstat.
[N]
Weight
kg
[kg]
Item no.
Data sheets
FP 422 M
10
26
27
60
10100
6013
4380
0.0665
300655
FP 422 Z
10
26
27
53
10100
6013
4380
0.0665
300656
FP 427 M
15
31
27
94
7400
7679
6397
0.085
300663
FP 427 Z
15
31
27
84
7400
7679
6397
0.085
300664
FP 432 M
20
36
27
133
5900
8104
7241
0.102
300669
FP 432 Z
20
36
27
121
5900
8104
7241
0.102
300670

25 - 30 mm Inner diameter

ALLE WIEDER EINBLENDEN
Inner diameter
ID
[mm]
Outer diameter
OD
[mm]
Width
W
[mm]
Torque
Tnom
[Nm]
Rotation speed
nmax
[rpm]
Dynamic load capacity
Cdyn.
[N]
Static load capacity
Cstat.
[N]
Weight
kg
[kg]
Item no.
Data sheets
FP 437 M
25
41
27
176
4800
9201
8142
0.123
300673
FP 437 Z
25
41
27
160
4800
9201
8142
0.123
300674
FP 442 M
30
46
27
223
4200
10247
10708
0.142
300679
FP 442 Z
30
46
27
208
4200
10247
10708
0.142
300680

35 - 40 mm Inner diameter

ALLE WIEDER EINBLENDEN
Inner diameter
ID
[mm]
Outer diameter
OD
[mm]
Width
W
[mm]
Torque
Tnom
[Nm]
Rotation speed
nmax
[rpm]
Dynamic load capacity
Cdyn.
[N]
Static load capacity
Cstat.
[N]
Weight
kg
[kg]
Item no.
Data sheets
FP 448 M
35
53
27
286
4300
11642
13440
0.19
306522
FP 448 Z
35
53
27
262
4300
11642
13440
0.19
306523
FP 453 M
40
58
27
343
3400
11417
13577
0.21
300683
FP 453 Z
40
58
27
314
3400
11417
13577
0.2044
300684

50 - 60 mm Inner diameter

ALLE WIEDER EINBLENDEN
Inner diameter
ID
[mm]
Outer diameter
OD
[mm]
Width
W
[mm]
Torque
Tnom
[Nm]
Rotation speed
nmax
[rpm]
Dynamic load capacity
Cdyn.
[N]
Static load capacity
Cstat.
[N]
Weight
kg
[kg]
Item no.
Data sheets
FP 463 M
50
68
27
461
2900
13070
17063
0.254
300685
FP 463 Z
50
68
27
428
2900
13070
17063
0.254
300687
FP 473 M
60
78
27
588
2500
14128
19896
0.294
300691
FP 473 Z
60
78
27
543
2500
14128
19896
0.294
300693

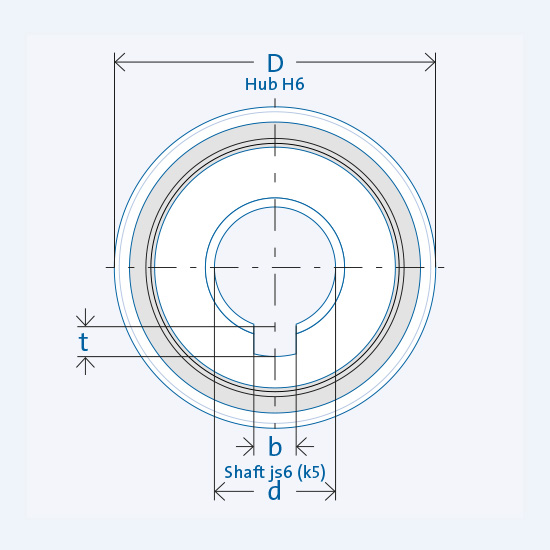

Complete freewheel clutch unit FN

The freewheel clutches in the FN series are not sealed and have a keyway connection at the inner ring and a press fit connection on the outer ring.



Characteristics
  • Width: 27 mm
  • Operating temperature: max. 140 °C (higher temperatures on request)
  • Lubrication: oil or grease lubrication, delivered with corrosion protection, operative grease filling on request
fn-453-geschl_2
FP_Detail_fn453z[1]

Components

  • Insert element*

    FE 400 M (meander spring) / FE 400 Z (tension spring)

  • Raceways

Bearing steel, hardened and ground

  • Inner ring

    Keyway per DIN 6885, Sheet 1, Tolerance: P9 with back clearance

  • Outer ring

    Press fit

  • Ball bearing

    integrated

  •  Roller bearing

    RL 400

  • Lubrication

  • Seal

* Available with either freewheel clutch insert element FE 400 M (meander spring) or FE 400 Z (tension spring).

15 - 25 mm Inner diameter

ALLE WIEDER EINBLENDEN
Inner diameter
ID
[mm]
Outer diameter
OD
[mm]
Width
W
[mm]
Torque
Tnom
[Nm]
Rotation speed
nmax
[rpm]
Dynamic load capacity
Cdyn.
[N]
Static load capacity
Cstat.
[N]
Weight
kg
[kg]
Keyway width
b
[mm]
Keyway depth
t
[mm]
Item no.
Data sheets
FN 437 M
15
41
27
176
4800
8962
8661
0.188
5
2,3
300706
FN 437 Z
15
41
27
160
4800
8962
8661
0.188
5
2,3
300707
FNS 437 Z
16
41
27
160
4800
8962
8661
0.188
5
2,3
300709
FN 442 M
20
46
27
223
4200
10247
10708
0.22
6
2,8
300712
FN 442 Z
20
46
27
208
4200
10247
10708
0.22
6
2,8
300714
FN 453 M
25
58
27
343
3400
11417
13577
0.364
8
3,3
300718
FN 453 Z
25
58
27
314
3400
11417
13577
0.364
8
3,3
300719
FNS 453 M
24
58
27
343
3400
11417
13577
0.364
8
3,3
300720

30 - 35 mm Inner diameter

ALLE WIEDER EINBLENDEN
Inner diameter
ID
[mm]
Outer diameter
OD
[mm]
Width
W
[mm]
Torque
Tnom
[Nm]
Rotation speed
nmax
[rpm]
Dynamic load capacity
Cdyn.
[N]
Static load capacity
Cstat.
[N]
Weight
kg
[kg]
Keyway width
b
[mm]
Keyway depth
t
[mm]
Item no.
Data sheets
FN 459 M
30
64
27
411
3000
12691
16320
0.43
8
3,3
300726
FN 459 Z
30
64
27
381
3000
12691
16320
0.43
8
3,3
300728
FN 463 M
35
68
27
461
2900
13070
17063
0.47
10
3,3
306526
FN 463 Z
35
68
27
427
2900
13070
17063
0.47
10
3,3
306527

40 - 45 mm Inner diameter

ALLE WIEDER EINBLENDEN
Inner diameter
ID
[mm]
Outer diameter
OD
[mm]
Width
W
[mm]
Torque
Tnom
[Nm]
Rotation speed
nmax
[rpm]
Dynamic load capacity
Cdyn.
[N]
Static load capacity
Cstat.
[N]
Weight
kg
[kg]
Keyway width
b
[mm]
Keyway depth
t
[mm]
Item no.
Data sheets
FN 470 M
40
75
27
550
2600
14050
19840
0.546
12
3,3
300731
FN 470 Z
40
75
27
509
2600
14050
19840
0.546
12
3,3
300733
FN 473 M
45
78
27
588
2500
14128
19896
0.58
14
3,8
306530
FN 473 Z
45
78
27
544
2500
14128
19896
0.58
14
3,8
306531

Complete freewheel clutch unit RA with mounting tab

The freewheel clutches in the RA series are complete units sealed on both sides with a keyway connection at the inner ring and a mounting tab.



Characteristics:
  • Width: 34 mm
  • Operating temperature: max. 100 °C
  • Lubrication: operative lifetime oil lubrication
ra-453z_2
FP_Detail_fn453z[1]

Components

  • Insert element

    Complete freewheel clutch unit, series FND insert element FE 400 Z (tension spring)

  • Raceways

    Bearing steel, hardened and ground

  • Inner ring

    Keyway per DIN 6885, Sheet 1, Tolerance P9 with back clearance

  • Outer ring

    with mounting tab (cast steel or steel)*

  • Ball bearing

    integrated

  • Roller bearing

    RL 400

  • Lubrication

    Lifetime oil lubrication

  • Seal

    GMN rubber seal

* Not suitable for indexing freewheel clutch applications.

15 - 45 mm

ALLE WIEDER EINBLENDEN
Inner diameter
ID
[mm]
Outer diameter
OD
[mm]
Mounintg tab thickness
A
[mm]
Width
W
[mm]
Mounintg tab bore
C
[mm]
Bore distance
E
[mm]
Mounting tab length
F
[mm]
Torque
Tnom
[Nm]
Rotation speed
nmax
[rpm]
Dynamic load capacity
Cdyn.
[N]
Static load capacity
Cstat.
[N]
Weight
kg
[kg]
Keyway width
b
[mm]
Keyway depth
t
[mm]
Item no.
Data sheets
RA 437 Z
15
65
12
34
10
47
62
161
1700
8962
8661
0.815
5
2,3
301026
RA 437 Z L
15
65
12
34
10
47
62
161
1700
8962
8661
0.815
5
2,3
301028
RA 442 Z
20
75
16
34
12
54
72
208
1500
10247
10708
1.13
6
2,8
301030
RA 442 Z L
20
75
16
34
12
54
72
208
1500
10247
10708
1.13
6
2,8
301033
RA 453 Z
25
90
16
34
16
62
84
314
1200
11417
13577
1.5
8
3,3
301043
RA 453 Z L
25
90
16
34
16
62
84
314
1200
11417
13577
1.5
8
3,3
301046
RA 459 Z
30
100
16
34
16
68
92
381
1100
12691
16320
2.015
8
3,3
301048
RA 470 Z
40
110
20
34
20
85
115
509
1000
14050
19840
2.39
12
3,3
301056
RA 459 Z L
30
100
16
34
16
68
92
381
1100
2.015
8
3,3
306635
RA 470 Z L
40
110
20
34
20
85
115
509
1000
2.39
12
3,3
306636
RA 463 Z
35
100
16
34
16
68
92
428
1100
2.39
10
3,3
306681
RA 473 Z
45
110
20
34
20
85
115
543
1000
2.39
14
3,8
306682

SPECIFIC INSTALLATION INSTRUCTIONS FOR COMPLETE FREEWHEEL CLUTCH UNITS

INSTALLATION INSTRUCTIONS FOR THE FPD, FND, FP AND FN SERIES



  • Installation tolerances

Shaft h5; hub H6



  • Mating parts

Hardening and grinding of the mating parts are not necessary. Thoroughly clean (grease free) the mating parts in the vicinity of the freewheel clutch as well as the freewheel clutch’s rings before making the press fit.



  • Bearing

The freewheel clutch includes ball and roller bearings. Additional external bearing support is not necessary.



  •  Press fit pressure

Press fit pressure must not be applied to the balls.



  • Clamping direction

The arrow on the inner ring designates the inner ring’s clamping direction.

Fr_Baureihen_FPD_550x550
Series FPD
Fr_Baureihen_FND_550x550
Series FND
Fr_Baureihen_FP_550x550
Series FP
Fr_Baureihen_FN_550x550
Series FN

INSTALLATION INSTRUCTIONS FOR THE RA SERIES

  • Installation tolerances

Shaft js6 (k5)



  • Mating parts

Hardening and grinding of the mating parts are not necessary. Thoroughly clean (grease free) the mating parts in the vicinity of the freewheel clutch as well as the freewheel clutch’s rings before making the press fit.



  •  Bearing

The freewheel clutch includes ball and roller bearings. Additional external bearing support is not necessary.



  • Press fit pressure

Press fit pressure must not be applied to the balls. Installation/removal through inner ring only.



  • Clamping direction

The arrow on the inner ring designates the inner ring’s clamping direction.



  • Mounting tab

Mounting tab must not be fixed to the housing tight.

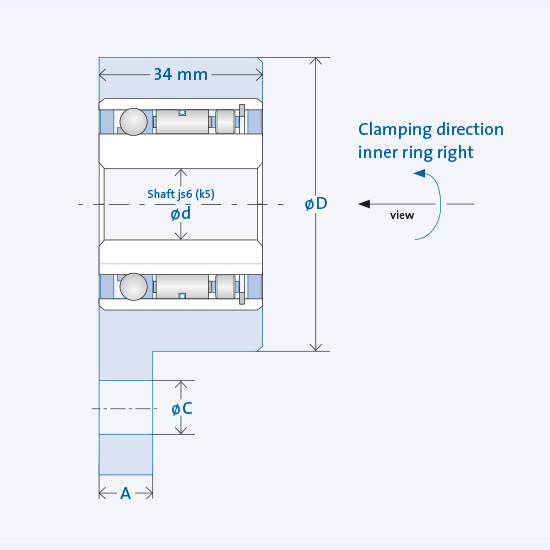

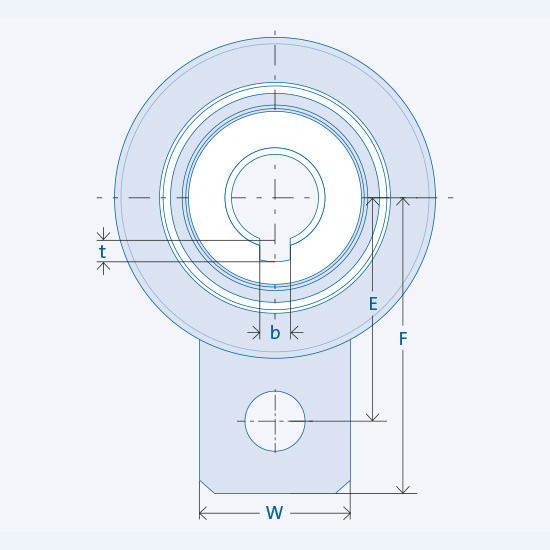

Fr_Baureihen_RA_550x550
Series RA
Fr_Baureihen_RA_Nr2_550x550
