Ball bearings and roller bearings

GMN ball bearing freewheel clutch units and complete freewheel clutch units have standard ball bearings integrated.

GMN series RL 400 roller bearings are available as an accessory for GMN freewheel clutch insert elements FE 400, FE 400 Z and FE 400 Z2.



Ball bearings

The rings each have a ground ball bearing raceway and form a unit with the balls which cannot be taken apart. The ball bearing raceways for all inner and outer rings are individually measured and paired. Bearing play between C3 and C5 is established according to the tolerance fields of the connecting parts after press-fitting the freewheel clutch. Minimum bearing play C3 is achieved with the largest dimension of the shaft’s diameter and the smallest dimension of the bore diameter (hub).

  • Series with ball bearings: all ball bearing freewheel clutch units and complete freewheel clutch units
  • Ball diameter: 5 mm
  • Material: 100 Cr6 (material number: 1.3505)
  • Ball cage: Plastic (PA)
    (ball bearing freewheel clutch units sizes 6204 and 6205: brass)
FL_KO_LA_1_550x550
Ball bearings
Blindbild_2x550

Roller bearings

GMN roller bearings with the tolerance “-4” (4 μm below nominal dimension) are produced both as components for GMN complete freewheel clutch units and as separate accessories. For applications with reduced bearing play, tolerance “0” is also deliverable on request. (Ordering designation e.g.: RL 432-0).

  • Series with roller bearings: all complete freewheel clutch units
  • Material rollers: 100 Cr6 (material number: 1.3505)
  • Material roller cage: Steel (RL 448 and RL 443: brass)
  • Operating temperature (max.): 170 °C (RL 448 and RL 443: 150 °C)

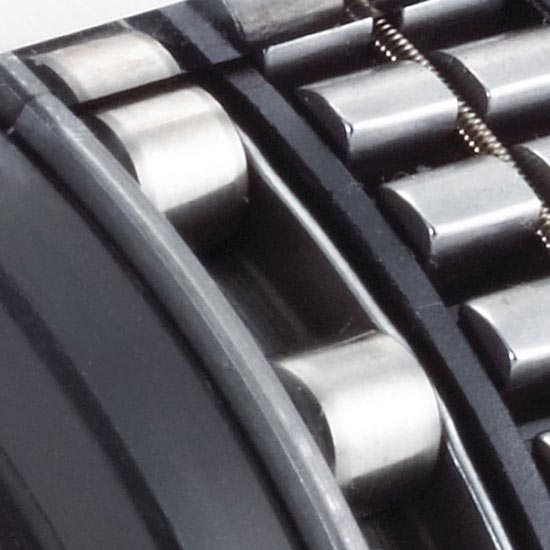

FL_KO_LA_2_550x550
Roller bearings

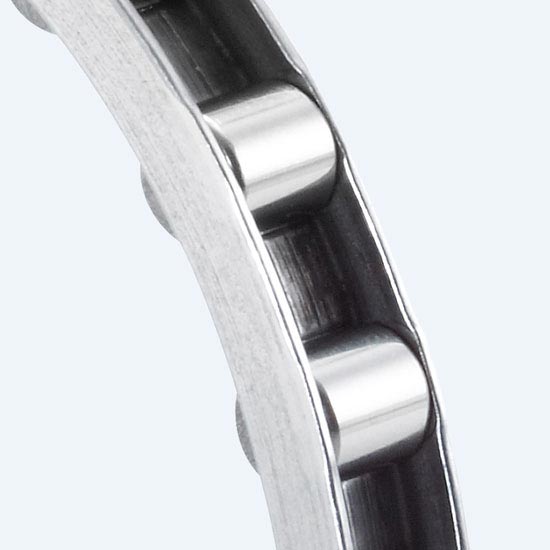

FL_KO_LA_3_550x550

4 - 10 mm Inner diameter

SHOW ALL AGAIN
Inner diameter
ID
[mm]
Outer diameter
OD
[mm]
Width
W
[mm]
Dynamic load capacity
Cdyn.
[N]
Static load capacity
Cstat.
[N]
Rotation speed oil
Oil nmax
[min-1]
Rotation speed grease
Grease nmax
[min-1]
Item no.
RL 412 - 4
4
12
6
3040
1760
55000
45000
303071
RL 412 0
4
12
5.8
2510
1400
55000
45000
303075
RL 416 - 4
8
16
6
3895
2347
36000
30000
303091
RL 416 0
8
16
5.8
3970
2000
38000
30000
303095
RL 414 - 4
6
14
6
3575
2112
50000
37000
303131
RL 414 0
6
14
5.8
3600
1550
43000
35000
303135
RL 418 - 4
10
18
6
5212
3520
30000
24000
303111

14 - 19 Inner diameter

SHOW ALL AGAIN
Inner diameter
ID
[mm]
Outer diameter
OD
[mm]
Width
W
[mm]
Dynamic load capacity
Cdyn.
[N]
Static load capacity
Cstat.
[N]
Rotation speed oil
Oil nmax
[min-1]
Rotation speed grease
Grease nmax
[min-1]
Item no.
RL 422 - 4
14
22
6
6013
4380
25000
19000
302652
RL 422 0
14
22
5.8
4960
3500
25000
19000
302656
RL 427 - 4
19
27
6
7679
6397
20000
15000
302672
RL 427 0
19
27
5.8
6350
5110
20000
15000
302676
RL 423 - 4
15
23
6
6034
4446
24000
18000
302914
RL 423 0
15
23
5.8
4980
3550
24000
18000
302918
RL 424 - 4
16
24
5.8
5350
4000
23000
17500
302935
RL 424 0
16
24
5.8
5350
4000
23000
17500
302939
RL 425 - 4
17
25
6
7157
5699
21000
17000
302954
RL 425 0
17
25
5.8
5910
4550
21000
17000
302958

20 - 29 mm Inner diameter

SHOW ALL AGAIN
Inner diameter
ID
[mm]
Outer diameter
OD
[mm]
Width
W
[mm]
Dynamic load capacity
Cdyn.
[N]
Static load capacity
Cstat.
[N]
Rotation speed oil
Oil nmax
[min-1]
Rotation speed grease
Grease nmax
[min-1]
Item no.
RL 432 - 4
24
32
6
8104
7241
16000
13000
302692
RL 432 0
24
32
5.8
6710
5790
16000
13000
302696
RL 437 - 4
29
37
6
8962
8661
14000
11000
302712
RL 437 0
29
37
5.8
7400
6920
14000
11000
302716
RL 428 - 4
20
28
6
7679
6453
19000
15000
302853
RL 428 0
20
28
5.8
6340
5160
19000
15000
302857
RL 430 - 4
22
30
6
8150
7148
17000
14000
302974
RL 433 - 4
25
33
6
8104
7283
15200
12000
303169

30 - 35 mm Inner diameter

SHOW ALL AGAIN
Inner diameter
ID
[mm]
Outer diameter
OD
[mm]
Width
W
[mm]
Dynamic load capacity
Cdyn.
[N]
Static load capacity
Cstat.
[N]
Rotation speed oil
Oil nmax
[min-1]
Rotation speed grease
Grease nmax
[min-1]
Item no.
RL 442 - 4
34
42
6
10247
10708
12000
9000
302732
RL 442 0
34
42
5.8
8410
8560
12000
9000
302736
RL 443 - 4
35
43
6
10103
10741
12000
9000
302873
RL 443 0
35
43
5.8
8380
8590
12000
9000
302877
RL 438 - 4
30
38
6
8962
8696
13000
10000
302993

40 - 47 mm Inner diameter

SHOW ALL AGAIN
Inner diameter
ID
[mm]
Outer diameter
OD
[mm]
Width
W
[mm]
Dynamic load capacity
Cdyn.
[N]
Static load capacity
Cstat.
[N]
Rotation speed oil
Oil nmax
[min-1]
Rotation speed grease
Grease nmax
[min-1]
Item no.
RL 453 - 4
45
53
6
11417
13577
9000
7000
302752
RL 453 0
45
53
5.8
9460
10860
9000
7000
302756
RL 448 - 4
40
48
6
11642
13440
10000
8000
302893
RL 448 0
40
48
5.8
9630
10750
10000
8000
302897
RL 455 - 4
47
55
6
11417
13624
8800
6900
303012
RL 465 - 4
47
65
5.8
11150
13850
7200
5500
303242
RL 465 0
47
65
5.8
11150
13850
7200
5500
303246
RL 449 - 4
41
49
5.8
9500
10500
9500
7800
303261
RL 449 0
41
49
5.8
9500
10500
9500
7800
303265

50 - 55 mm Inner diameter

SHOW ALL AGAIN
Inner diameter
ID
[mm]
Outer diameter
OD
[mm]
Width
W
[mm]
Dynamic load capacity
Cdyn.
[N]
Static load capacity
Cstat.
[N]
Rotation speed oil
Oil nmax
[min-1]
Rotation speed grease
Grease nmax
[min-1]
Item no.
RL 459 - 4
51
59
6
12691
16320
8000
6400
302773
RL 459 0
51
59
5.8
10560
13050
8000
6500
302777
RL 463 - 4
55
63
6
13070
17063
7500
6000
302793
RL 463 0
55
63
5.8
10730
13650
7500
6000
302797
RL 458 - 4
50
58
6
11922
14993
8500
6500
303031
RL 458 0
50
58
5.8
9950
11990
8500
6500
303035

60 - 80 mm Inner diameter

SHOW ALL AGAIN
Inner diameter
ID
[mm]
Outer diameter
OD
[mm]
Width
W
[mm]
Dynamic load capacity
Cdyn.
[N]
Static load capacity
Cstat.
[N]
Rotation speed oil
Oil nmax
[min-1]
Rotation speed grease
Grease nmax
[min-1]
Item no.
RL 470 - 4
62
70
6
14128
19840
7000
5300
302813
RL 470 0
62
70
5.8
11690
15870
7000
5000
302817
RL 473 - 4
65
73
6
14128
19896
6500
5100
302833
RL 473 0
65
73
5.8
11590
15910
6500
5000
302837
RL 478 - 4
70
78
6
13614
19978
6000
5000
303051
RL 478 0
70
78
5.8
11420
15980
6000
4700
303055
RL 468 - 4
60
68
6
12690
17160
7100
5600
303151
RL 468 0
60
68
5.8
11490
14550
7100
5100
303155
RL 488 - 4
80
88
6
14954
22796
5300
4300
303183
RL 488 0
80
88
5.8
12230
18230
5300
4100
303187
